Iscar ISCAR 5697611

Iscar 5697611 HELIMILL Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 150516 Insert, Carbide, Manufacturers Grade: IC908, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S

Invoice description: Adkt 150516r-hm Ic908

UNSPSC: 23242107

Manufacturer PN: 5697611

^$29.70 EA

Factory Order
Estimated to ship in 14 days

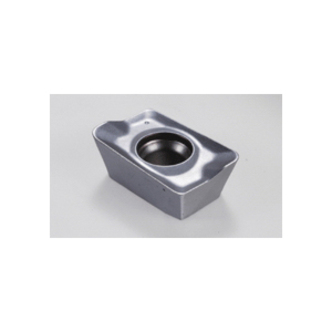

enlarge

Product Overview

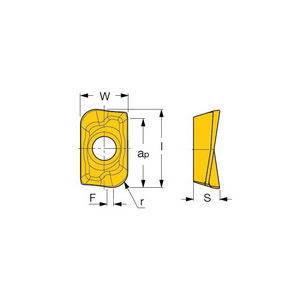

Iscar Milling Insert, Series: HELIMILL, ADKT Insert, 150516 Insert, 85 deg Parallelogram, 5.6 mm Thickness, 9.57 mm Width, 15.6 mm Length, HM Chipbreaker, 1.6 mm Corner Radius, 15 deg Lead Angle, Manufacturers Grade: IC908, ISO Code: ADKT 150516R-HM IC908, Right Hand, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing

ChipbreakerHM

Corner Radius1.6 mm

FinishPVD-TiAlN Coated

Hand of InsertRight

Insert Size150516

Insert StyleADKT

ISO CodeADKT 150516R-HM IC908

Lead Angle15 deg

Length15.6 mm

Manufacturers GradeIC908

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELIMILL

Shape85 deg Parallelogram

Thickness5.6 mm

Width9.57 mm
