Iscar ISCAR 5697588

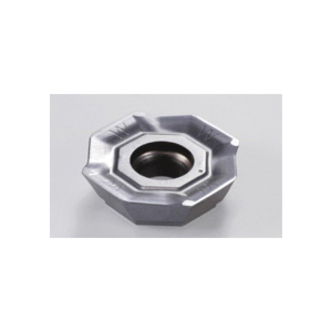

Iscar 5697588 HELIOCTO Single Sided Milling Insert With 4 Wiper Cutting Edges, OFCT Insert, 07T3 Insert, Carbide, Manufacturers Grade: IC950, Octagon Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5697588
$34.24 EA
Factory Order
Estimated to ship in 14 days
QTY:

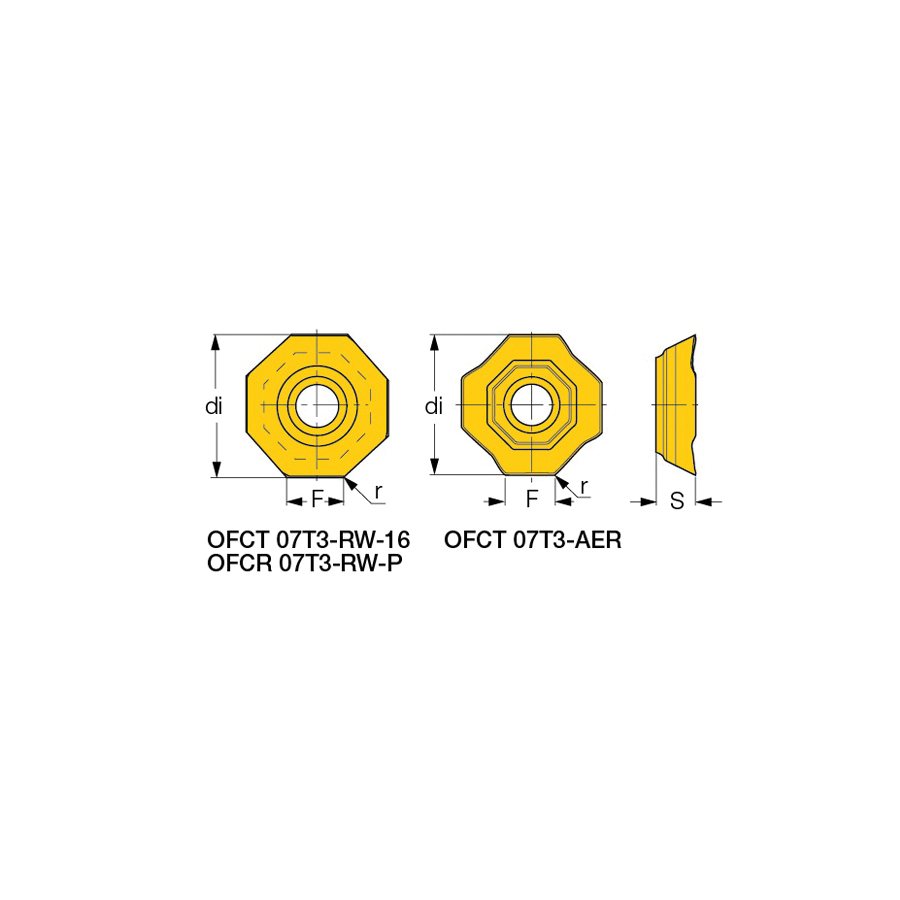

Iscar Milling Insert, Single Sided, Series: HELIOCTO, OFCT Insert, 07T3 Insert, Octagon Shape, 18.9 mm Inscribed Circle, 5.3 mm Thickness, AER Chipbreaker, 1.6 mm Corner Radius, Manufacturers Grade: IC950, ISO Code: OFCT 07T3-AER IC950, Right Hand of Insert, Carbide, PVD Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerAER
Corner Radius1.6 mm
FinishPVD Coated
Hand of InsertRight
Inscribed Circle18.9 mm
Insert Size07T3
Insert StyleOFCT
ISO CodeOFCT 07T3-AER IC950
Manufacturers GradeIC950
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELIOCTO
ShapeOctagon
Thickness5.3 mm
TypeSingle Sided
