Iscar ISCAR 5694943

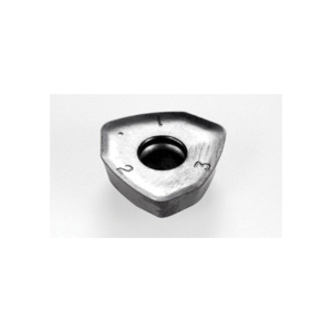

Iscar 5694943 FEEDMILL Single Sided Milling Insert, WOCT Insert, 09T320 Insert, Carbide, Manufacturers Grade: IC928, 80 deg Trigon Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5694943
$29.34 EA
Factory Order
Estimated to ship in 14 days
QTY:

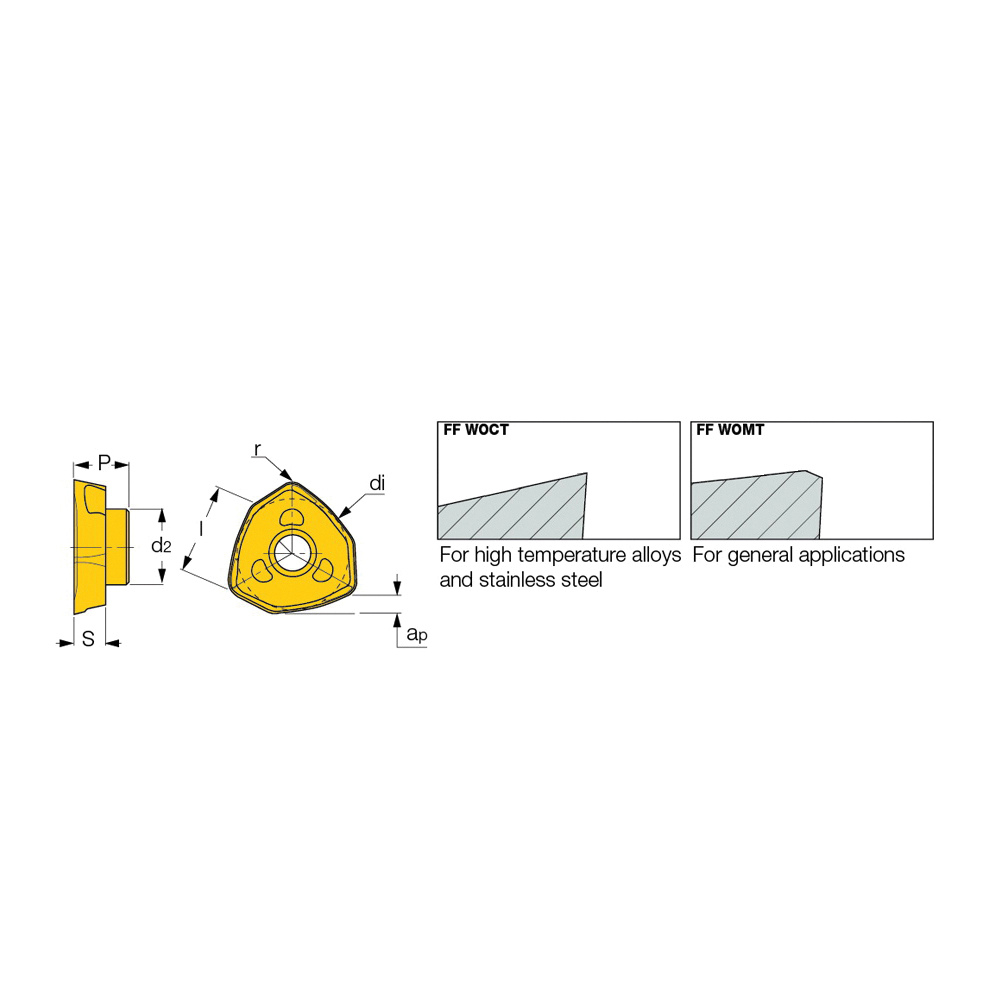

Iscar Milling Insert, Single Sided, Series: FEEDMILL, WOCT Insert, 09T320 Insert, 80 deg Trigon Shape, 14.5 mm Inscribed Circle, 3.95 mm Thickness, 10.6 mm Length, T Chipbreaker, 2 mm Corner Radius, Positive Rake, Manufacturers Grade: IC928, ISO Code: FF WOCT 09T320T IC928, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

  • Features

  • Designed with a cylinder on bottom that is seated in a mating hole in the pocket

Specifications

ApplicationFacing, Fast Feed Milling, Helical Interpolation, Plunging and Recessing, Profiling, Rampdown and Side Plunging
ChipbreakerT
Corner Radius2 mm
FinishPVD-TiAlN Coated
Inscribed Circle14.5 mm
Insert Size09T320
Insert StyleWOCT
ISO CodeFF WOCT 09T320T IC928
Length10.6 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesFEEDMILL
Shape80 deg Trigon
Thickness3.95 mm
TypeSingle Sided
