Iscar ISCAR 5694867

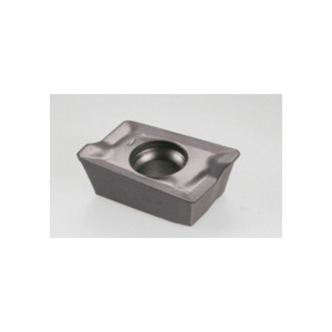

Iscar 5694867 HELIMILL Single Sided Reinforced Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
Adkt 1505pdtr-rm Ic928
Factory Order
Iscar Milling Insert, Single Sided Reinforced, Series: HELIMILL, ADKT Insert, 1505 Insert, 85 deg Parallelogram Shape, 9.52 mm Inscribed Circle, 5.63 mm Thickness, 9.54 mm Width, 15.75 mm Length, RM Chipbreaker, 1 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: ADKT 1505PDTR-RM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerRM
Corner Radius1 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle9.52 mm
Insert Size1505
Insert StyleADKT
ISO CodeADKT 1505PDTR-RM IC928
Length15.75 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.63 mm
TypeSingle Sided Reinforced
Width9.54 mm
Additional Information
Country of OriginIL
