Iscar ISCAR 5694787

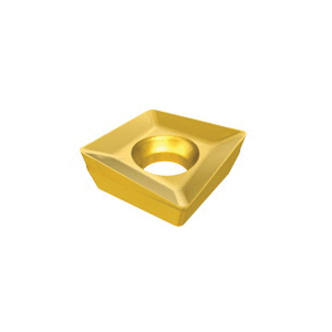

Iscar 5694787 HELIQUAD Single Sided Milling Insert, XOMT Insert, 060204 Insert, Carbide, Manufacturers Grade: IC910, Squared Shape, Material Grade: K, P
Invoice description:
Xomt 060204t-hq Ic910
Iscar Milling Insert, Single Sided, Series: HELIQUAD, XOMT Insert, 060204 Insert, Squared Shape, 6.16 mm Inscribed Circle, 2.56 mm Thickness, 6.16 mm Width, 6.16 mm Length, HQ Chipbreaker, 0.4 mm Corner Radius, Manufacturers Grade: IC910, ISO Code: XOMT 060204T-HQ IC910, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application
Specifications
ApplicationT-Slotting, Bottom Shouldering, Chamfering and Bottom Deburring, Counterboring, Countersinking, Drill Mill, Rampdown and Shouldering
ChipbreakerHQ
Corner Radius0.4 mm
FinishPVD-AlTiN Coated
Inscribed Circle6.16 mm
Insert Size060204
Insert StyleXOMT
ISO CodeXOMT 060204T-HQ IC910
Length6.16 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELIQUAD
ShapeSquared
Thickness2.56 mm
TypeSingle Sided
Width6.16 mm
