Iscar ISCAR 5694179

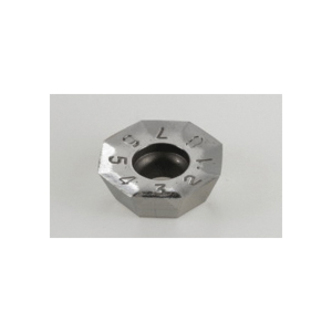

Iscar 5694179 HELIOCTO Single Sided Milling Insert, OECR Insert, 060405 Insert, Carbide, Manufacturers Grade: IC28, Octagon Shape, Material Grade: N

UNSPSC: 23242107
Manufacturer PN: 5694179
$27.00 EA
Factory Order
Estimated to ship in 14 days
QTY:

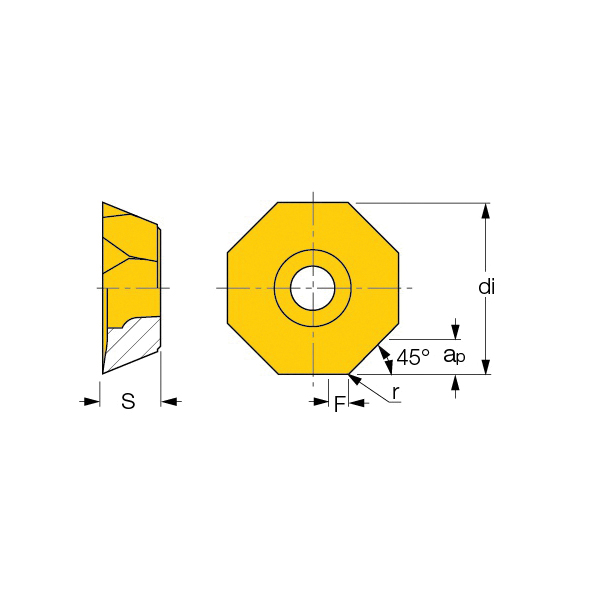

Iscar Milling Insert, Single Sided, Series: HELIOCTO, OECR Insert, 060405 Insert, Octagon, 14.45 mm Inscribed Circle, 4.9 mm Thickness, P Chipbreaker, 0.5 mm Corner Radius, Positive Rake, 45 deg Lead Angle, Manufacturers Grade: IC28, ISO Code: OECR 060405AER-P IC28, Right Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerP
Corner Radius0.5 mm
FinishUncoated
Hand of InsertRight
Inscribed Circle14.45 mm
Insert Size060405
Insert StyleOECR
ISO CodeOECR 060405AER-P IC28
Lead Angle45 deg
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
RakePositive
SeriesHELIOCTO
ShapeOctagon
Thickness4.9 mm
TypeSingle Sided
