Iscar ISCAR 5693820

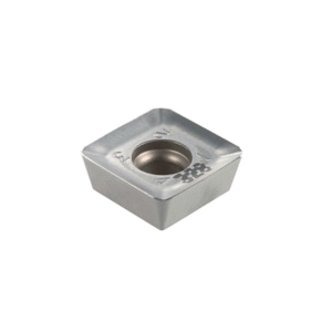

Iscar 5693820 HELIQUAD Single Sided Milling Insert With 4 Right or Left Hand Cutting Edges, QDCT Insert, 120524 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5693820
$39.06 EA
Factory Order
Estimated to ship in 14 days
QTY:

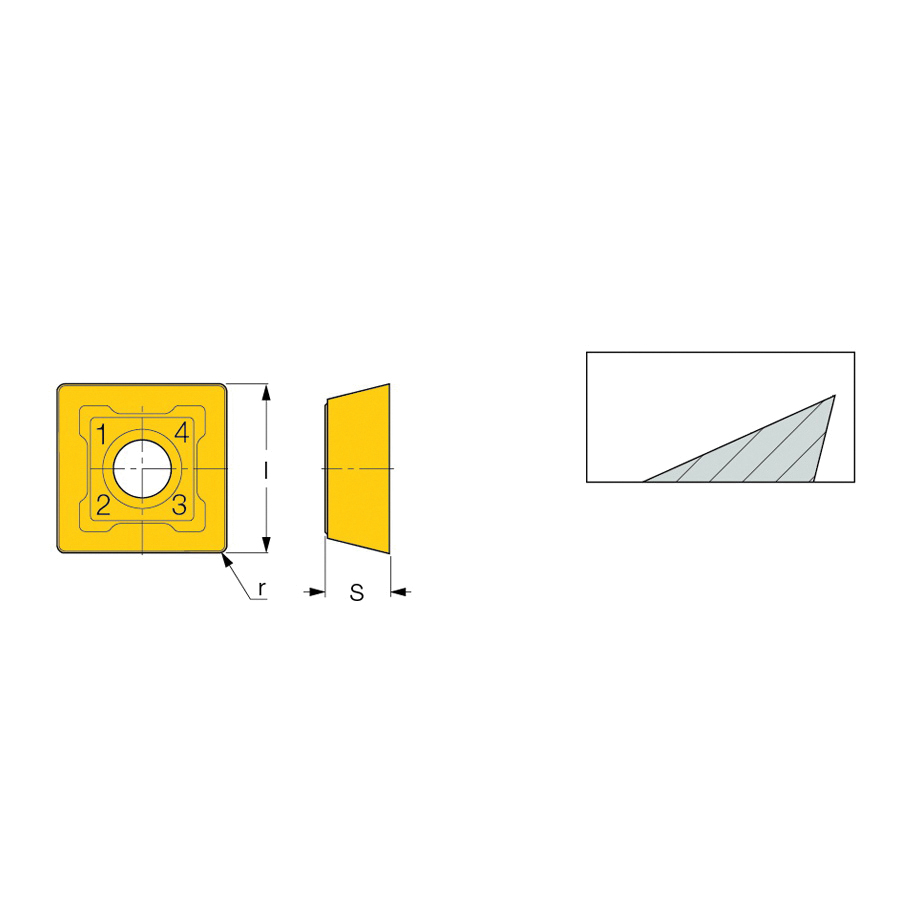

Iscar Milling Insert, Single Sided, Series: HELIQUAD, QDCT Insert, 120524 Insert, Squared Shape, 12.7 mm Inscribed Circle, 4.92 mm Thickness, 12.7 mm Width, 12.7 mm Length, PDN Chipbreaker, 2.4 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: QDCT 120524-PDN IC328, Neutral Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Facing, Shouldering, Side Slotting and Slotting
ChipbreakerPDN
Corner Radius2.4 mm
FinishPVD-TiCN Coated
Hand of InsertNeutral
Inscribed Circle12.7 mm
Insert Size120524
Insert StyleQDCT
ISO CodeQDCT 120524-PDN IC328
Length12.7 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIQUAD
ShapeSquared
Thickness4.92 mm
TypeSingle Sided
Width12.7 mm
