Iscar ISCAR 5692417

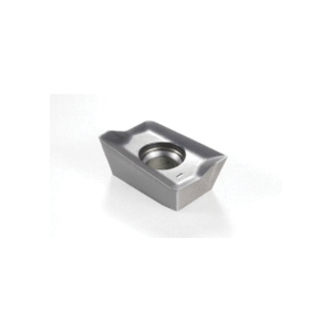

Iscar 5692417 HELIMILL Single Sided Milling Insert, ADKR Insert, 1505 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S
Factory Order

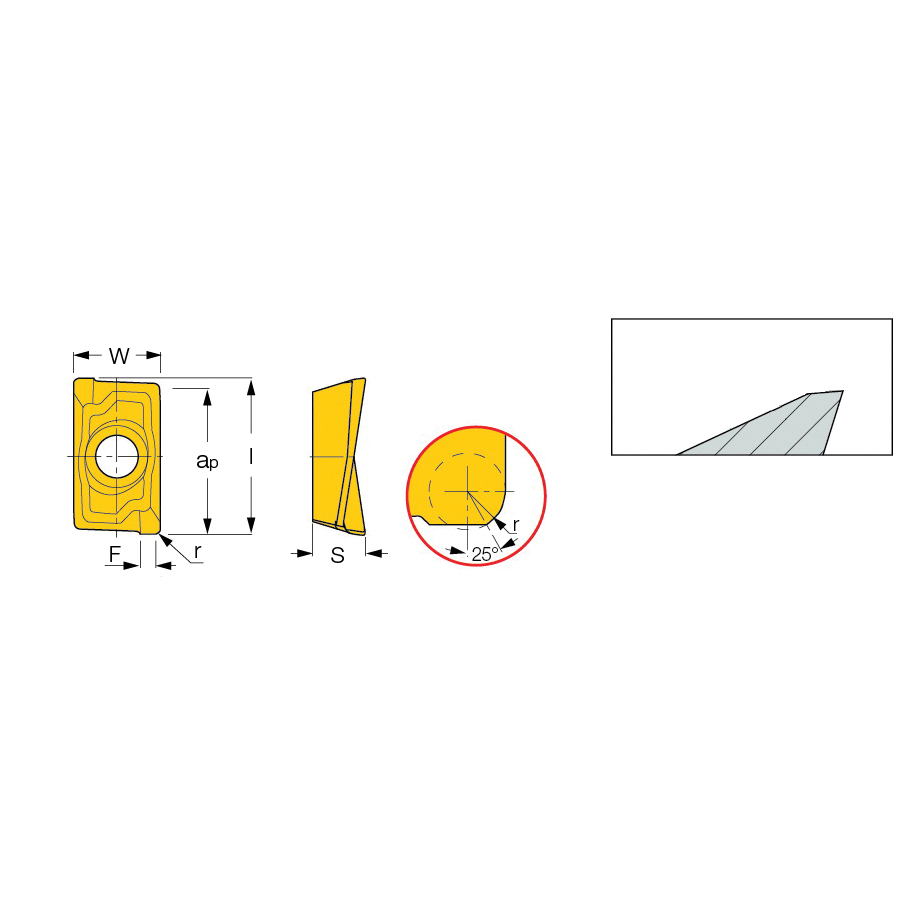

Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKR Insert, 1505 Insert, 85 deg Parallelogram Shape, 6 mm Thickness, 9.6 mm Width, 15.95 mm Length, HM Chipbreaker, 0.8 mm Corner Radius, Positive Rake, Manufacturers Grade: IC928, ISO Code: ADKR 1505PDR-HM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Features
- Recommended for interrupted cut and heavy operations
Specifications
ApplicationBottom Shouldering, Counterboring, Facing, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerHM
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size1505
Insert StyleADKR
ISO CodeADKR 1505PDR-HM IC928
Length15.95 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness6 mm
TypeSingle Sided
Width9.6 mm
