Iscar ISCAR 5692407

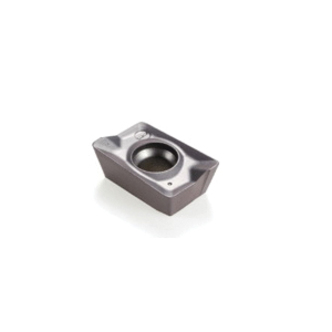

Iscar 5692407 HELIMILL Single Sided Milling Insert With 2 Helical Cutting Edges, ADKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5692407
$28.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Single Sided, Series: HELIMILL, ADKT Insert, 1505 Insert, 85 deg Parallelogram Shape, 9.52 mm Inscribed Circle, 5.64 mm Thickness, 9.57 mm Width, 15.65 mm Length, HM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC928, ISO Code: ADKT 1505PDR-HM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Drill Mill, Facing, Rampdown, Plunging and Recessing
ChipbreakerHM
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle9.52 mm
Insert Size1505
Insert StyleADKT
ISO CodeADKT 1505PDR-HM IC928
Length15.65 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.64 mm
TypeSingle Sided
Width9.57 mm
