Iscar ISCAR 5692394

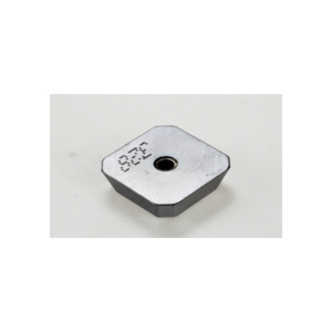

Iscar 5692394 ISCARMILL Milling Insert, SEKN Insert, 1203 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5692394
$14.10 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: ISCARMILL, SEKN Insert, 1203 Insert, Squared Shape, 12.7 mm Inscribed Circle, 3.18 mm Thickness, 12.7 mm Width, 12.7 mm Length, Flat Rake, 20 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: SEKN 1203AFTN IC328, Ambidextrous Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Plunging and Recessing, Slanted Shoulder and Chamfer
FinishPVD-TiCN Coated
Hand of InsertAmbidextrous
Inscribed Circle12.7 mm
Insert Size1203
Insert StyleSEKN
ISO CodeSEKN 1203AFTN IC328
Lead Angle20 deg
Length12.7 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakeFlat
SeriesISCARMILL
ShapeSquared
Thickness3.18 mm
Width12.7 mm
