Iscar ISCAR 5692349

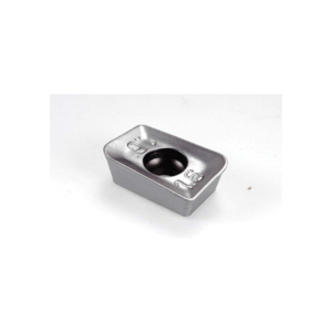

Iscar 5692349 HELIMILL Milling Insert With Helical Cutting Edge, APKT Insert, 100316 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5692349
$25.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: HELIMILL, APKT Insert, 100316 Insert, 85 deg Parallelogram Shape, 3.47 mm Thickness, 6.7 mm Width, 10.9 mm Length, RM Chipbreaker, 1.6 mm Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC928, ISO Code: APKT 100316PDTR-RM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationCountersinking, Drill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerRM
Corner Radius1.6 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size100316
Insert StyleAPKT
ISO CodeAPKT 100316PDTR-RM IC928
Lead Angle11 deg
Length10.9 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.47 mm
Width6.7 mm
