Iscar ISCAR 5692339

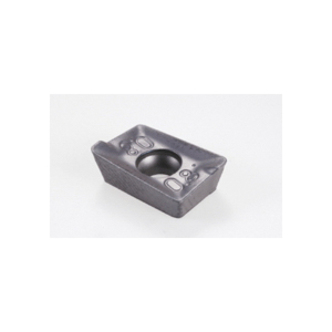

Iscar 5692339 HELIMILL Milling Insert With Helical Cutting Edge, APKT Insert, 100308 Insert, Carbide, Manufacturers Grade: IC928, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
Apkt 100308pdtr-rm Ic928
Factory Order

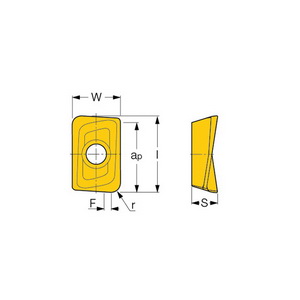

Iscar Milling Insert, Series: HELIMILL, APKT Insert, 100308 Insert, 85 deg Parallelogram Shape, 3.74 mm Thickness, 6.7 mm Width, 11 mm Length, RM Chipbreaker, 0.8 mm Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC928, ISO Code: APKT 100308PDTR-RM IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationCountersinking, Drill Mill, Facing, Rampdown, Shouldering, Slotting, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerRM
Corner Radius0.8 mm
FinishPVD-TiAlN Coated
Hand of InsertRight
Insert Size100308
Insert StyleAPKT
ISO CodeAPKT 100308PDTR-RM IC928
Lead Angle11 deg
Length11 mm
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness3.74 mm
Width6.7 mm
Additional Information
Country of OriginIL
