Iscar ISCAR 5691508

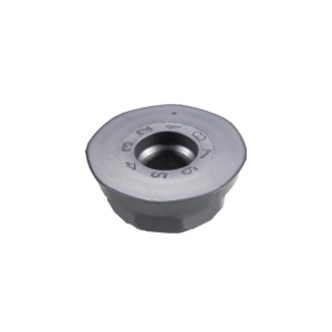

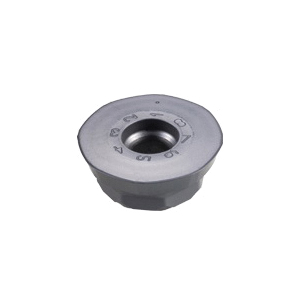

Iscar 5691508 HELIOCTO FEEDMILL Milling Insert With 8 FEEDMILL Large Radii Segmented Cutting Edges, OFMW Insert, 0706 Insert, Carbide, Manufacturers Grade: IC928, Octagon Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5691508
$36.98 EA
Factory Order
Estimated to ship in 14 days
QTY:

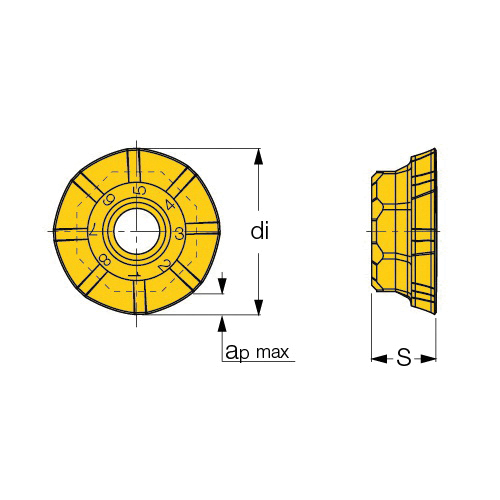

Iscar Milling Insert, Series: HELIOCTO FEEDMILL, OFMW Insert, 0706 Insert, Octagon Shape, 20.4 mm Inscribed Circle, 8 mm Thickness, FF Chipbreaker, Positive Rake, Manufacturers Grade: IC928, ISO Code: OFMW 0706R10-FF IC928, Right Hand of Insert, Carbide, PVD-TiAlN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

  • Features

  • Milling inserts with 8 FEEDMILL large radii segmented cutting edges, used on HELIOCTO cutters
  • Used at very fast feed - up to 3 mm/tooth at low depths of cut - 0.5 mm
  • First choice for fast metal removal in face milling

Specifications

ApplicationFacing and Fast Feed Milling
ChipbreakerFF
FinishPVD-TiAlN Coated
Hand of InsertRight
Inscribed Circle20.4 mm
Insert Size0706
Insert StyleOFMW
ISO CodeOFMW 0706R10-FF IC928
Manufacturers GradeIC928
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakePositive
SeriesHELIOCTO FEEDMILL
ShapeOctagon
Thickness8 mm
