Iscar ISCAR 5690893

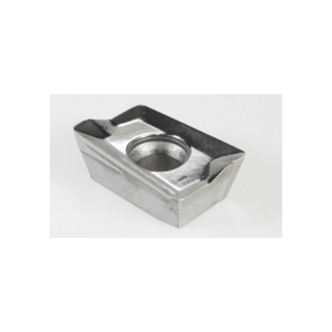

Iscar 5690893 HELIMILL Milling Insert, ADCR Insert, 1505 Insert, Carbide, Manufacturers Grade: IC28, 85 deg Parallelogram Shape, Material Grade: N

UNSPSC: 23242107
Manufacturer PN: 5690893
$33.16 EA
Factory Order
Estimated to ship in 14 days
QTY:

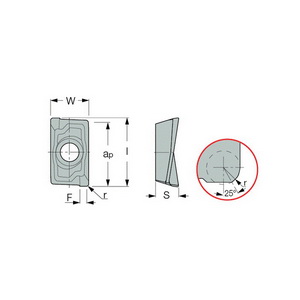

Iscar Milling Insert, Series: HELIMILL, ADCR Insert, 1505 Insert, 85 deg Parallelogram, 5.64 mm Thickness, 9.5 mm Width, 15.95 mm Length, P Chipbreaker, 0.8 mm Corner Radius, Positive Rake, 15 deg Lead Angle, Manufacturers Grade: IC28, ISO Code: ADCR 1505PDFR-P IC28, Right Hand, Carbide, Uncoated, Material Grade: N, Non-Ferrous Metals Material Application

Specifications

ApplicationCounterboring, Countersinking, Facing, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerP
Corner Radius0.8 mm
FinishUncoated
Hand of InsertRight
Insert Size1505
Insert StyleADCR
ISO CodeADCR 1505PDFR-P IC28
Lead Angle15 deg
Length15.95 mm
Manufacturers GradeIC28
MaterialCarbide
Material ApplicationNon-Ferrous Metals
Material GradeN
RakePositive
SeriesHELIMILL
Shape85 deg Parallelogram
Thickness5.64 mm
Width9.5 mm
