Iscar ISCAR 5690424

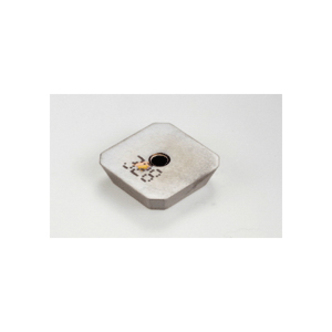

Iscar 5690424 ISCARMILL Milling Insert, SEK Insert, 1203 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5690424
$14.10 EA
Factory Order
Estimated to ship in 14 days
QTY:

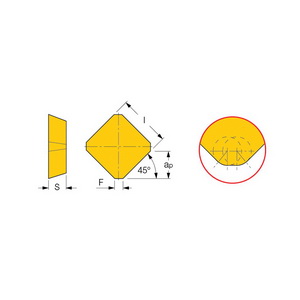

Iscar Milling Insert, Series: ISCARMILL, SEK Insert, 1203 Insert, Squared Shape, 12.7 mm Inscribed Circle, 3.18 mm Thickness, 12.7 mm Width, 12.7 mm Length, N Chipbreaker, Flat Rake, 20 deg Lead Angle, Manufacturers Grade: IC328, ISO Code: SEKN 1203AF-N IC328, Ambidextrous Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Plunging and Recessing, Slanted Shoulder and Chamfer
ChipbreakerN
FinishPVD-TiCN Coated
Hand of InsertAmbidextrous
Inscribed Circle12.7 mm
Insert Size1203
Insert StyleSEK
ISO CodeSEKN 1203AF-N IC328
Lead Angle20 deg
Length12.7 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
RakeFlat
SeriesISCARMILL
ShapeSquared
Thickness3.18 mm
Width12.7 mm
