Iscar ISCAR 5690336

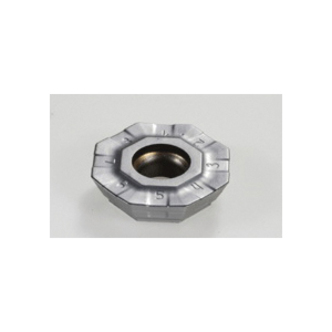

Iscar 5690336 HELIOCTO Single Sided Milling Insert, OFMT Insert, 07T3 Insert, Carbide, Manufacturers Grade: IC328, Octagon Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5690336
$26.58 EA
Factory Order
Estimated to ship in 14 days
QTY:

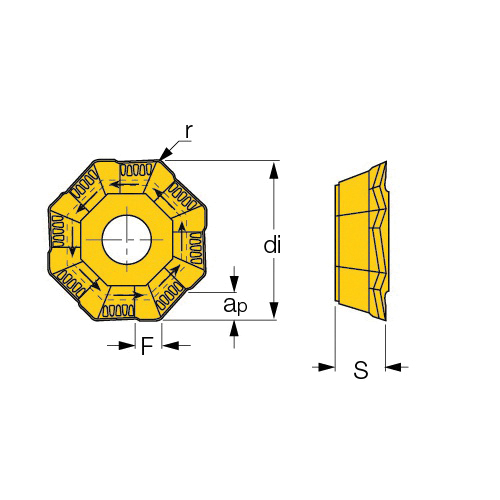

Iscar Milling Insert, Single Sided, Series: HELIOCTO, OFMT Insert, 07T3 Insert, Octagon Shape, 18.07 mm Inscribed Circle, 4.54 mm Thickness, AEN Chipbreaker, 0.6 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: OFMT 07T3-AEN IC328, Neutral Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Helical Interpolation, Rampdown, Slanted Shoulder and Chamfer
ChipbreakerAEN
Corner Radius0.6 mm
FinishPVD-TiCN Coated
Hand of InsertNeutral
Inscribed Circle18.07 mm
Insert Size07T3
Insert StyleOFMT
ISO CodeOFMT 07T3-AEN IC328
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIOCTO
ShapeOctagon
Thickness4.54 mm
TypeSingle Sided
