Iscar ISCAR 5690088

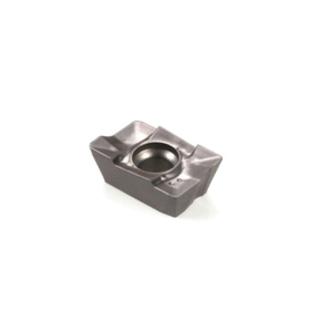

Iscar 5690088 HELISHRED Single Sided Milling Insert With a Serrated Cutting Edge, ADMT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC950, 85 deg Parallelogram Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5690088
$31.30 EA
Factory Order
Estimated to ship in 14 days
QTY:

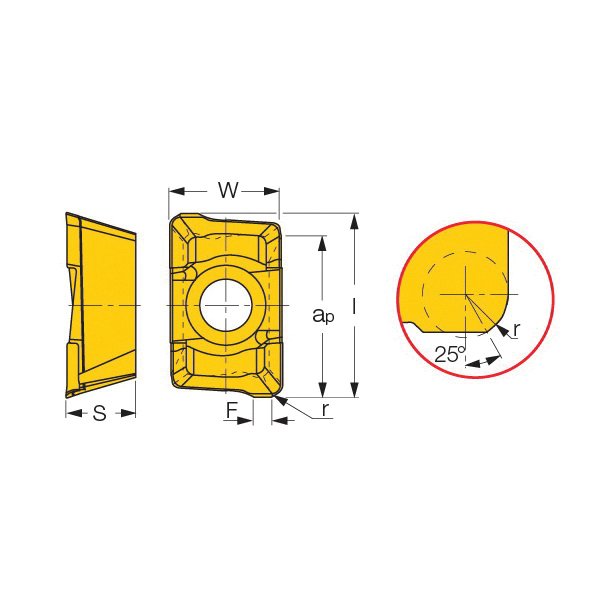

Iscar Milling Insert, Single Sided, Series: HELISHRED, ADMT Insert, 1505 Insert, 85 deg Parallelogram Shape, 5.64 mm Thickness, 9.6 mm Width, 15.85 mm Length, PDR-HS Chipbreaker, 0.8 mm Corner Radius, 25 deg Lead Angle, Manufacturers Grade: IC950, ISO Code: ADMT1505PDR-HS IC950, Right Hand of Insert, Carbide, PVD Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Counterboring, Countersinking, Facing, Rampdown, Shouldering and Side Slotting
ChipbreakerPDR-HS
Corner Radius0.8 mm
FinishPVD Coated
Hand of InsertRight
Insert Size1505
Insert StyleADMT
ISO CodeADMT1505PDR-HS IC950
Lead Angle25 deg
Length15.85 mm
Manufacturers GradeIC950
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesHELISHRED
Shape85 deg Parallelogram
Thickness5.64 mm
TypeSingle Sided
Width9.6 mm
