Iscar ISCAR 5680762

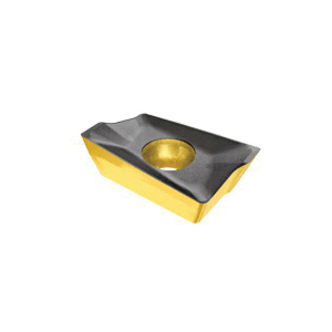

Iscar 5680762 HELI2000 Milling Insert, ANSI Code: HM90 APCT 100302R-PDR, HM90 Insert, 100302 Insert, Manufacturers Grade: IC808

Pack Size: 10
UNSPSC: 23291601
Manufacturer PN: 5680762
$34.18 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Series: HELI2000, HM90 Insert, 100302 Insert, 0.274 in Inscribed Circle, 0.139 in Thickness, 0.274 in Width, 0.459 in Length, 0.008 in Corner Radius, Manufacturers Grade: IC808, ANSI Code: HM90 APCT 100302R-PDR, ISO Code: HM90 APCT 1003

  • Features

  • HELI2000 insert with a sharp cutting edge used for semi-finishing and finishing applications
  • Recommended for machining austenitic stainless steel, titanium and high temperature alloys

Specifications

ApplicationMilling
ANSI CodeHM90 APCT 100302R-PDR
Corner Radius0.008 in
Inscribed Circle0.274 in
Insert Size100302
Insert StyleHM90
ISO CodeHM90 APCT 1003
Length0.459 in
Manufacturers GradeIC808
SeriesHELI2000
Thickness0.139 in
Width0.274 in
