Iscar ISCAR 5669419

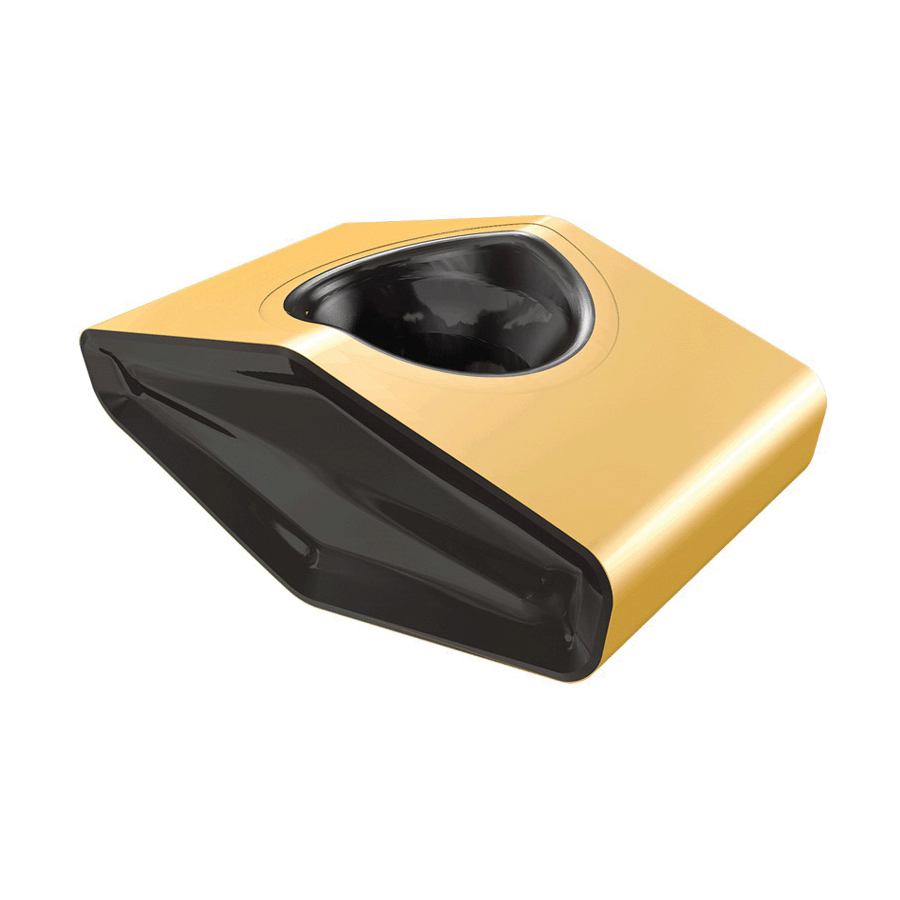

Iscar 5669419 TANG4FEED 4-Cutting Edge Tangentially Clamped Milling Insert, ANSI Code: FF VNMT 0706ZN-ER, FF Insert, 0706 Insert, Manufacturers Grade: IC830
Invoice description:
Ff Vnmt 0706zn-er Ic83 0 Milling Insert 10/box
Pack Size: 10
UNSPSC:
23291601
Manufacturer PN: 5669419
$29.70 EA
Factory OrderEstimated to ship in 14 days
Iscar Milling Insert, 4-Cutting Edge Tangentially Clamped, Series: TANG4FEED, FF Insert, 0706 Insert, 9.05 mm Inscribed Circle, 9.05 mm Thickness, 6.4 mm Width, 15 mm Length, 1 mm Corner Radius, Manufacturers Grade: IC830, ANSI Code: FF VNMT 0706ZN-ER, ISO Code: FF VNMT 0706
Specifications
ApplicationFor fast feed machining and milling
ANSI CodeFF VNMT 0706ZN-ER
Corner Radius1 mm
Inscribed Circle9.05 mm
Insert Size0706
Insert StyleFF
ISO CodeFF VNMT 0706
Length15 mm
Manufacturers GradeIC830
SeriesTANG4FEED
Thickness9.05 mm
Type4-Cutting Edge Tangentially Clamped
Width6.4 mm
Additional Information
Standards/ApprovalISO 13399
