Iscar ISCAR 5668393

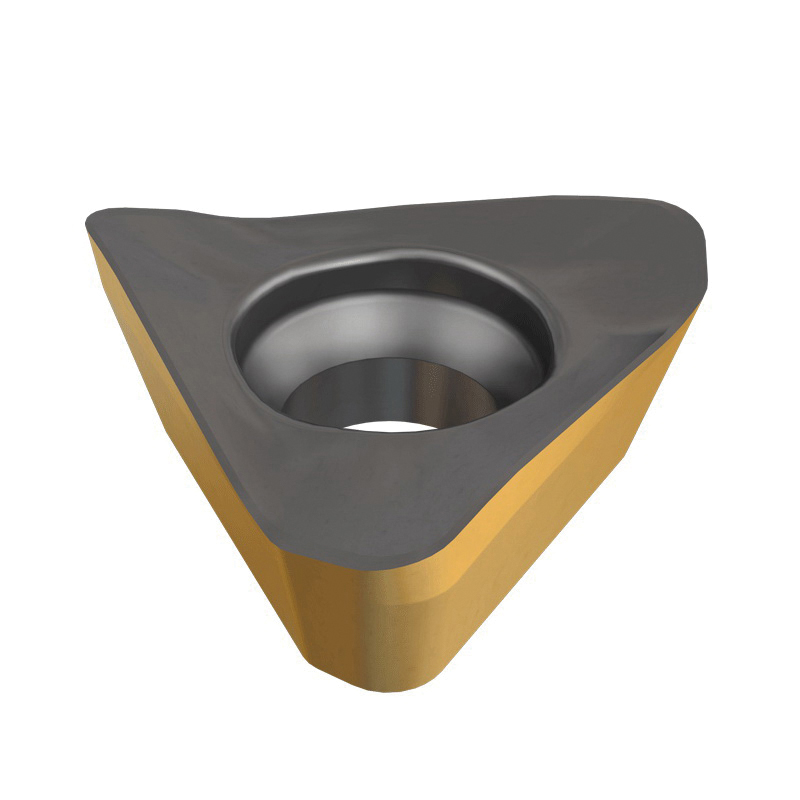

Iscar 5668393 HELI3MILL 3-Helical Cutting Edge Milling Insert, ANSI Code: HM390 TPKT 1003PDR, HM390 Insert, 1003 Insert, Manufacturers Grade: IC845
Invoice description:
Hm390 Tpkt 1003pdr Ic845
Pack Size: 10
UNSPSC:
23291601
Manufacturer PN: 5668393
$25.93 EA
Factory OrderEstimated to ship in 14 days
Iscar Milling Insert, 3-Helical Cutting Edge, Series: HELI3MILL, HM390 Insert, 1003 Insert, 7.5 mm Inscribed Circle, 3.85 mm Thickness, 10.9 mm Length, 0.8 mm Corner Radius, Manufacturers Grade: IC845, ANSI Code: HM390 TPKT 1003PDR, ISO Code: HM390 TPKT/CT 1003
Features
- For general use applications
- 3-helical cutting edges for 90 deg shoulder accuracy
Specifications
ApplicationTooling Systems
ANSI CodeHM390 TPKT 1003PDR
Corner Radius0.8 mm
Inscribed Circle7.5 mm
Insert Size1003
Insert StyleHM390
ISO CodeHM390 TPKT/CT 1003
Length10.9 mm
Manufacturers GradeIC845
SeriesHELI3MILL
Thickness3.85 mm
Type3-Helical Cutting Edge
Additional Information
Standards/ApprovalISO 13399
