Iscar ISCAR 5668061

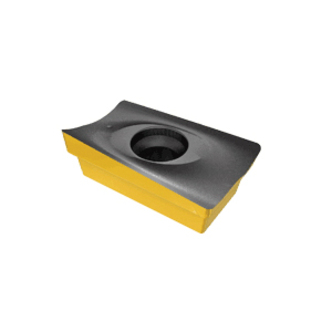

Iscar 5668061 MILLSHRED P290 LINE Single Sided Milling Insert With Two 12 and 18 mm Straight Cutting Edges, ACCT Insert, 1806 Insert, Carbide, Manufacturers Grade: IC808, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S
Invoice description:
P290 Acct 1806pdr-hl 808
Factory Order

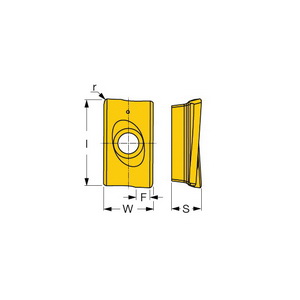

Iscar Milling Insert, Single Sided, Series: MILLSHRED P290 LINE, ACCT Insert, 1806 Insert, 85 deg Parallelogram Shape, 6.5 mm Thickness, 10.8 mm Width, 19.4 mm Length, PDR-HL Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: P290 ACCT 1806PDR-HL IC808, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationFacing, Profiling, Rampdown and Shouldering
ChipbreakerPDR-HL
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size1806
Insert StyleACCT
ISO CodeP290 ACCT 1806PDR-HL IC808
Length19.4 mm
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesMILLSHRED P290 LINE
Shape85 deg Parallelogram
Thickness6.5 mm
TypeSingle Sided
Width10.8 mm
Additional Information
Country of OriginIL
