Iscar ISCAR 5667622

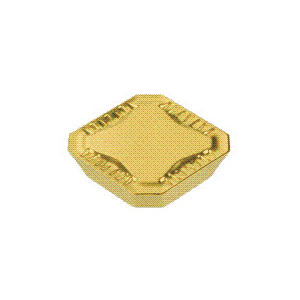

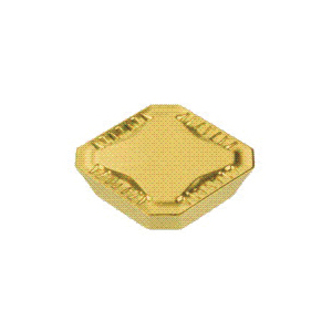

Iscar 5667622 ISCARMILL Milling Insert With Ribs Along Edges, ANSI Code: SEKR 43AFN-76 IC328, SEKR Insert, 1204 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S
Invoice description:
Sekr 43afn-76 Ic328
Factory Order
Iscar Milling Insert, Series: ISCARMILL, SEKR Insert, 1204 Insert, Squared, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 76 Chipbreaker, Manufacturers Grade: IC328, ANSI Code: SEKR 43AFN-76 IC328, ISO Code: SEKR 1204AFN-76 IC328, Ambidextrous Hand, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Plunging and Recessing, Slanted Shoulder and Chamfer
ANSI CodeSEKR 43AFN-76 IC328
Chipbreaker76
FinishPVD-TiCN Coated
Hand of InsertAmbidextrous
Inscribed Circle12.7 mm
Insert Size1204
Insert StyleSEKR
ISO CodeSEKR 1204AFN-76 IC328
Length12.7 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesISCARMILL
ShapeSquared
Thickness4.76 mm
Width12.7 mm
Additional Information
Country of OriginIL
