Iscar ISCAR 5667029

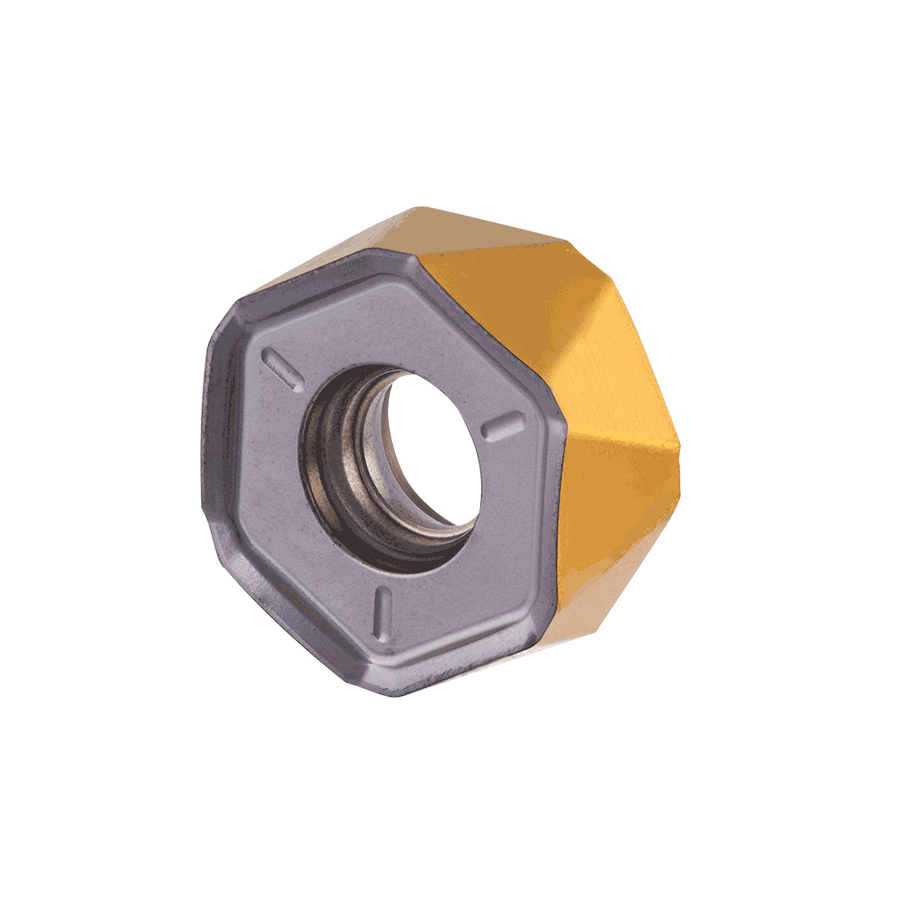

Iscar 5667029 HELIDO 1200 UPFEED LINE Double Sided Milling Insert With 12 Cutting Edges, HXCU Insert, 0606 Insert, Carbide, Manufacturers Grade: IC808, Hexagon Shape, Material Grade: H, K, M, P, S
Invoice description:
H1200 Hxcu 0606-tr Ic808
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 1200 UPFEED LINE, HXCU Insert, 0606 Insert, Hexagon Shape, 14.88 mm Inscribed Circle, 7.15 mm Thickness, TR Chipbreaker, 1.6 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: H1200 HXCU 0606-TR IC808, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationFacing, Fast Feed Milling, Slanted Shoulder and Chamfer
ChipbreakerTR
Corner Radius1.6 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Inscribed Circle14.88 mm
Insert Size0606
Insert StyleHXCU
ISO CodeH1200 HXCU 0606-TR IC808
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIDO 1200 UPFEED LINE
ShapeHexagon
Thickness7.15 mm
TypeDouble Sided
