Iscar ISCAR 5607795

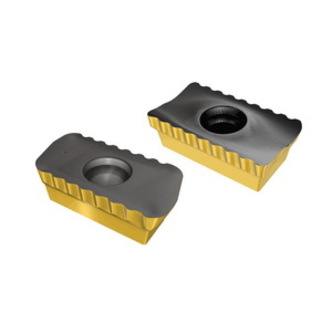

Iscar 5607795 MILLSHRED P290 LINE Single Sided Milling Insert With 2 Serrated Cutting Edges, ACKT Insert, 1806 Insert, Carbide, Manufacturers Grade: IC808, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S

Invoice description: P290 Ackt 1806pdr-fw 808

UNSPSC: 23242107

Manufacturer PN: 5607795

^$36.98 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

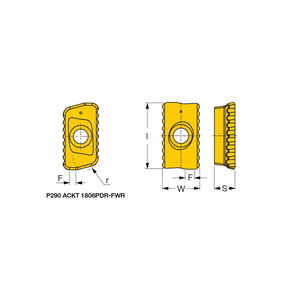

Iscar Milling Insert, Single Sided, Series: MILLSHRED P290 LINE, ACKT Insert, 1806 Insert, 85 deg Parallelogram Shape, 6 mm Thickness, 10.7 mm Width, 18.5 mm Length, PDR-FW Chipbreaker, 1.2 mm Corner Radius, 7 deg Lead Angle, Manufacturers Grade: IC808, ISO Code: P290 ACKT 1806PDR-FW IC808, Right Hand of Insert, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationFacing, Profiling, Rampdown and Shouldering

ChipbreakerPDR-FW

Corner Radius1.2 mm

FinishPVD-TiAlN/AlTiN+TiN Coated

Hand of InsertRight

Insert Size1806

Insert StyleACKT

ISO CodeP290 ACKT 1806PDR-FW IC808

Lead Angle7 deg

Length18.5 mm

Manufacturers GradeIC808

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesMILLSHRED P290 LINE

Shape85 deg Parallelogram

Thickness6 mm

TypeSingle Sided

Width10.7 mm
