Iscar ISCAR 5607773

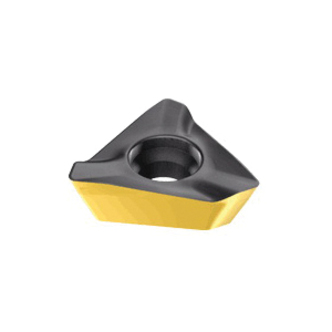

Iscar 5607773 HELIIQMILL 390 LINE Single Sided Milling Insert With 3 Helical Cutting Edges, TCKT Insert, 0703 Insert, Carbide, Manufacturers Grade: IC808, Triangular Shape, Material Grade: H, K, M, P, S
Invoice description:
Hm390 Tckt 0703pctr 808
Factory Order

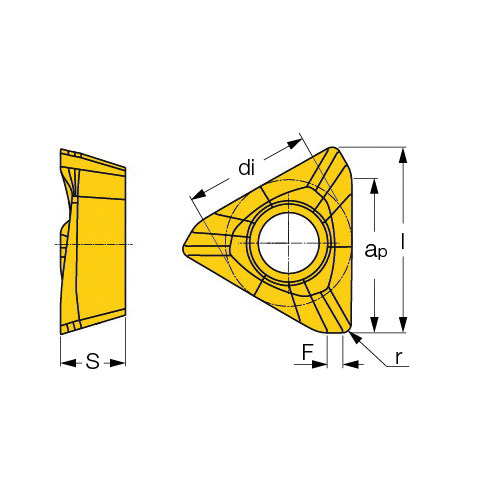

Iscar Milling Insert, Single Sided, Series: HELIIQMILL 390 LINE, TCKT Insert, 0703 Insert, Triangular Shape, 5.8 mm Inscribed Circle, 3.15 mm Thickness, 7.8 mm Length, TR Chipbreaker, 0.5 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: HM390 TCKT 0703PCTR IC808, Right Hand of Insert, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationCountersinking, Facing, Helical Interpolation, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
ChipbreakerTR
Corner Radius0.5 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Inscribed Circle5.8 mm
Insert Size0703
Insert StyleTCKT
ISO CodeHM390 TCKT 0703PCTR IC808
Length7.8 mm
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIIQMILL 390 LINE
ShapeTriangular
Thickness3.15 mm
TypeSingle Sided
Additional Information
Country of OriginIL
