Iscar ISCAR 5607748

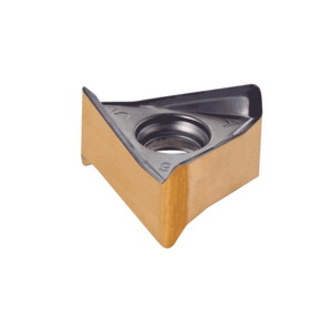

Iscar 5607748 HELIDO 690 LINE Milling Insert With 6 Helical Cutting Edges, H690 TNKX Insert, 100504 Insert, Carbide, Manufacturers Grade: IC830, Triangular Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5607748
$35.66 EA
Factory Order
Estimated to ship in 14 days
QTY:

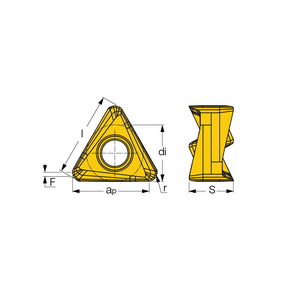

Iscar Milling Insert, Series: HELIDO 690 LINE, H690 TNKX Insert, 100504 Insert, Triangular Shape, 6.2 mm Inscribed Circle, 4.7 mm Thickness, 8.48 mm Length, 0.4 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: H690 TNKX 100504PNTR IC830, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Slotting and Shouldering
Corner Radius0.4 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Inscribed Circle6.2 mm
Insert Size100504
Insert StyleH690 TNKX
ISO CodeH690 TNKX 100504PNTR IC830
Length8.48 mm
Manufacturers GradeIC830
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIDO 690 LINE
ShapeTriangular
Thickness4.7 mm
