Iscar ISCAR 5607679

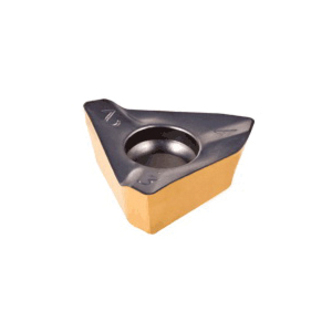

Iscar 5607679 HELIIQMILL 390 LINE Single Sided Milling Insert With 3 Helical Cutting Edges, TDKT Insert, 1505 Insert, Carbide, Manufacturers Grade: IC5400, Triangular Shape, Material Grade: M, P

UNSPSC: 23242107
Manufacturer PN: 5607679
$27.18 EA
Factory Order
Estimated to ship in 14 days
QTY:

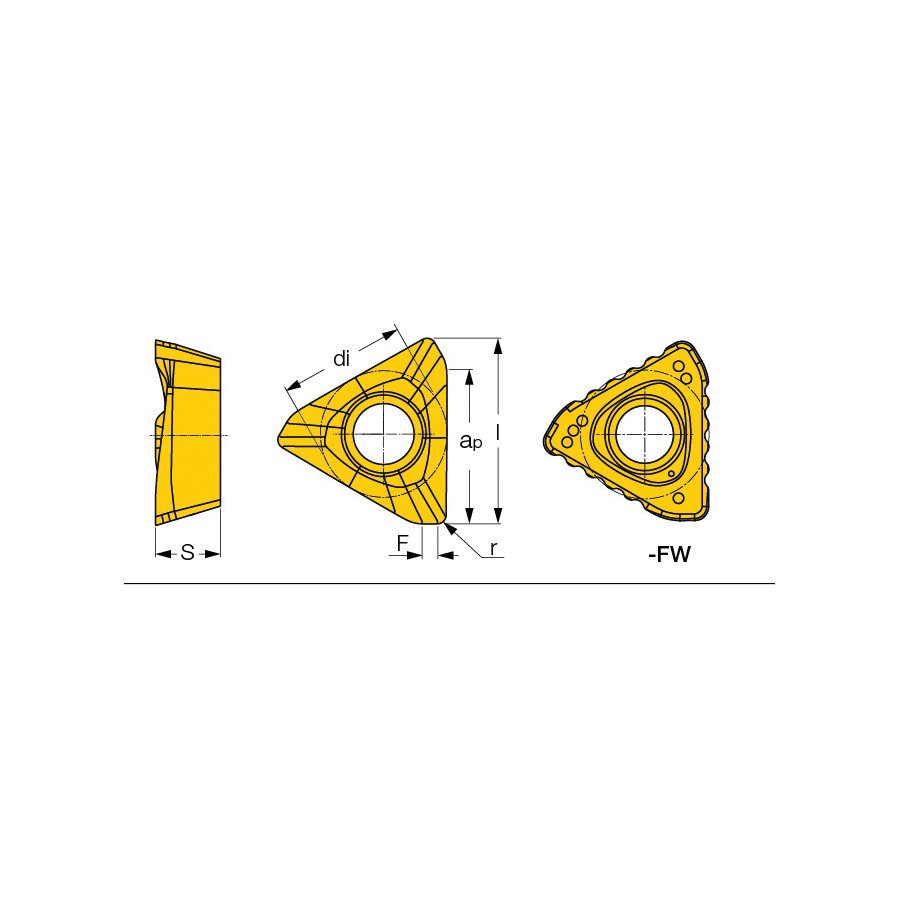

Iscar Milling Insert, Single Sided, Series: HELIIQMILL 390 LINE, TDKT Insert, 1505 Insert, Triangular, 11.4 mm Inscribed Circle, 5.85 mm Thickness, 16.7 mm Length, PDR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC5400, ISO Code: HM390 TDKT 1505PDR IC5400, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex Material Application

Specifications

ApplicationFacing, Helical Interpolation, Shouldering and Slotting
ChipbreakerPDR
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertRight
Inscribed Circle11.4 mm
Insert Size1505
Insert StyleTDKT
ISO CodeHM390 TDKT 1505PDR IC5400
Length16.7 mm
Manufacturers GradeIC5400
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex
Material GradeM, P
SeriesHELIIQMILL 390 LINE
ShapeTriangular
Thickness5.85 mm
TypeSingle Sided
