Iscar ISCAR 5607678

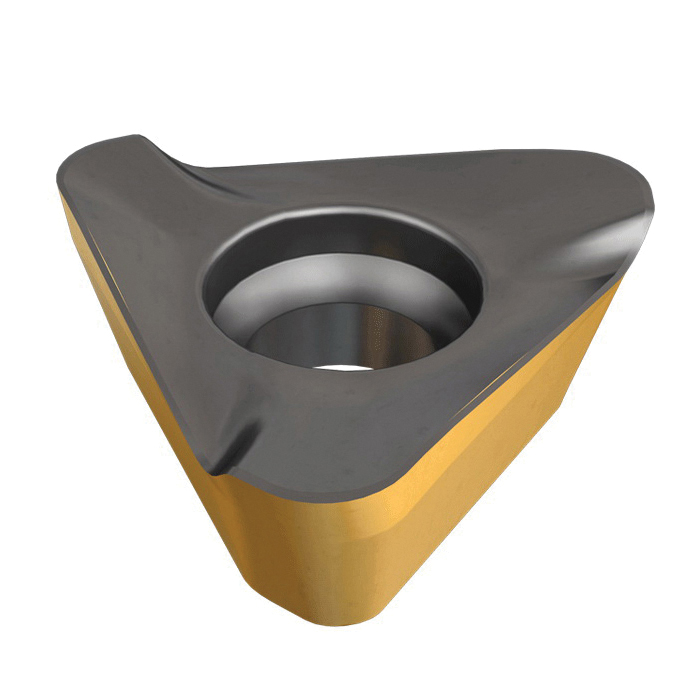

Iscar 5607678 HELI3MILL 3-Helical Cutting Edge Milling Insert, ANSI Code: HM390 TDKT 1505PDR, HM390 Insert, 1505 Insert, Manufacturers Grade: IC330, Triangular Shape

Pack Size: 10
UNSPSC: 23291601
Manufacturer PN: 5607678
$27.18 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, 3-Helical Cutting Edge, Series: HELI3MILL, HM390 Insert, 1505 Insert, Triangular, 0.449 in Inscribed Circle, 0.23 in Thickness, 0.657 in Length, 0.031 in Corner Radius, Manufacturers Grade: IC330, ANSI Code: HM390 TDKT 1505PDR, ISO Code: HM390 TDKT/CT 1505

  • Features

  • Triangular inserts with 3 helical cutting edges for 90deg shoulder accuracy
  • For general use applications

Specifications

ApplicationMilling
ANSI CodeHM390 TDKT 1505PDR
Corner Radius0.031 in
Inscribed Circle0.449 in
Insert Size1505
Insert StyleHM390
ISO CodeHM390 TDKT/CT 1505
Length0.657 in
Manufacturers GradeIC330
SeriesHELI3MILL
ShapeTriangular
Thickness0.23 in
Type3-Helical Cutting Edge
