Iscar ISCAR 5607650

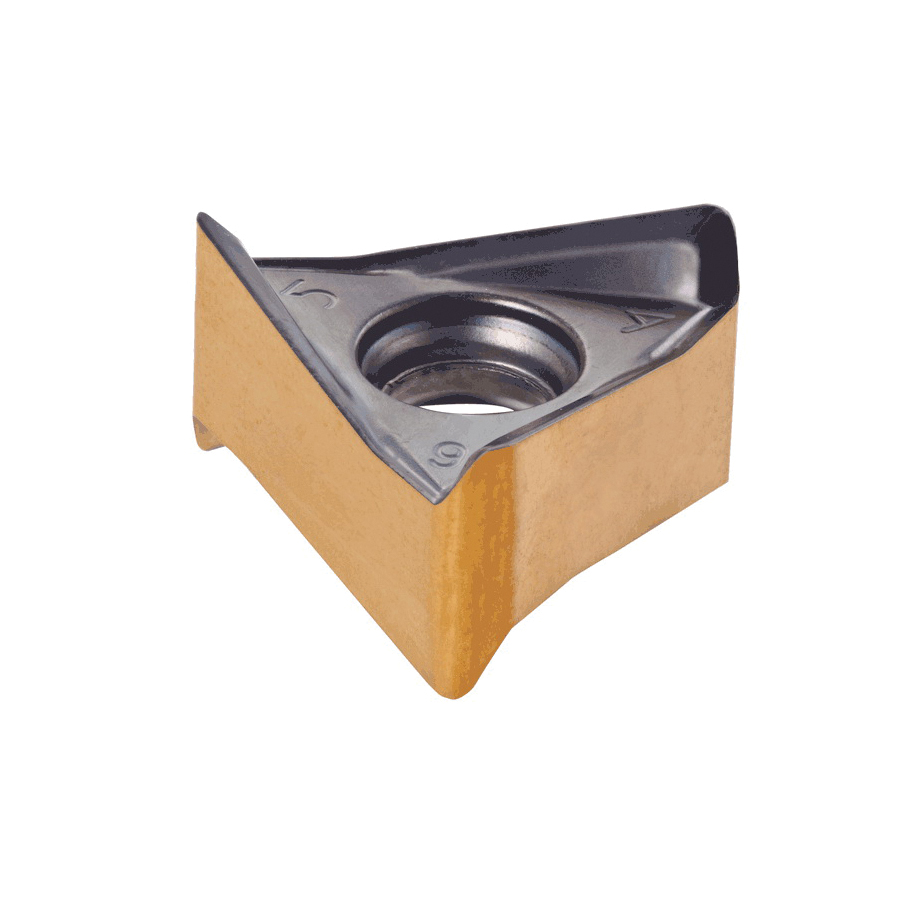

Iscar 5607650 HELIDO 690 LINE Milling Insert With 6 Helical Cutting Edges, TNKX Insert, 160610 Insert, Carbide, Manufacturers Grade: IC830, Triangular Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5607650
$42.18 EA
Factory Order
Estimated to ship in 14 days
QTY:

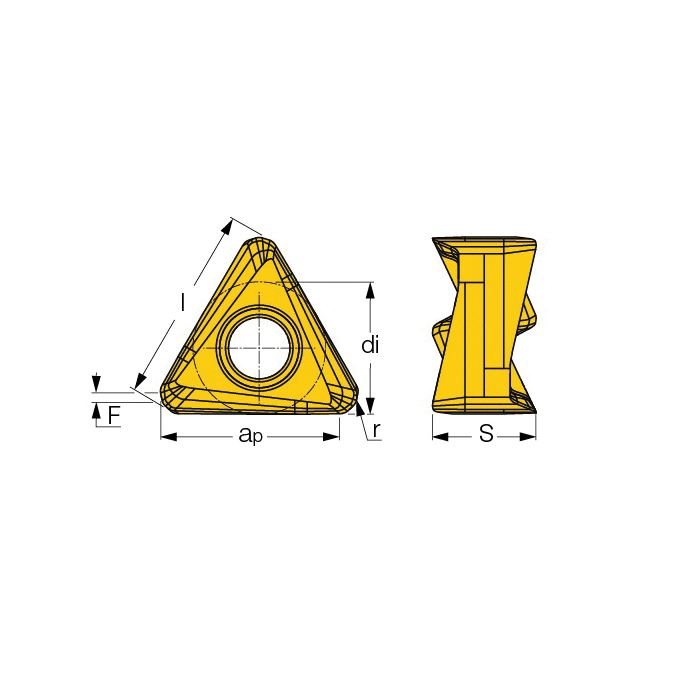

Iscar Milling Insert, Series: HELIDO 690 LINE, TNKX Insert, 160610 Insert, Triangular, 12 mm Inscribed Circle, 10 mm Thickness, 17.5 mm Length, PNTR Chipbreaker, 1 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: H690 TNKX 160610PNTR IC830, Right Hand, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Shouldering and Slotting
ChipbreakerPNTR
Corner Radius1 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Inscribed Circle12 mm
Insert Size160610
Insert StyleTNKX
ISO CodeH690 TNKX 160610PNTR IC830
Length17.5 mm
Manufacturers GradeIC830
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIDO 690 LINE
ShapeTriangular
Thickness10 mm
