Iscar ISCAR 5607526

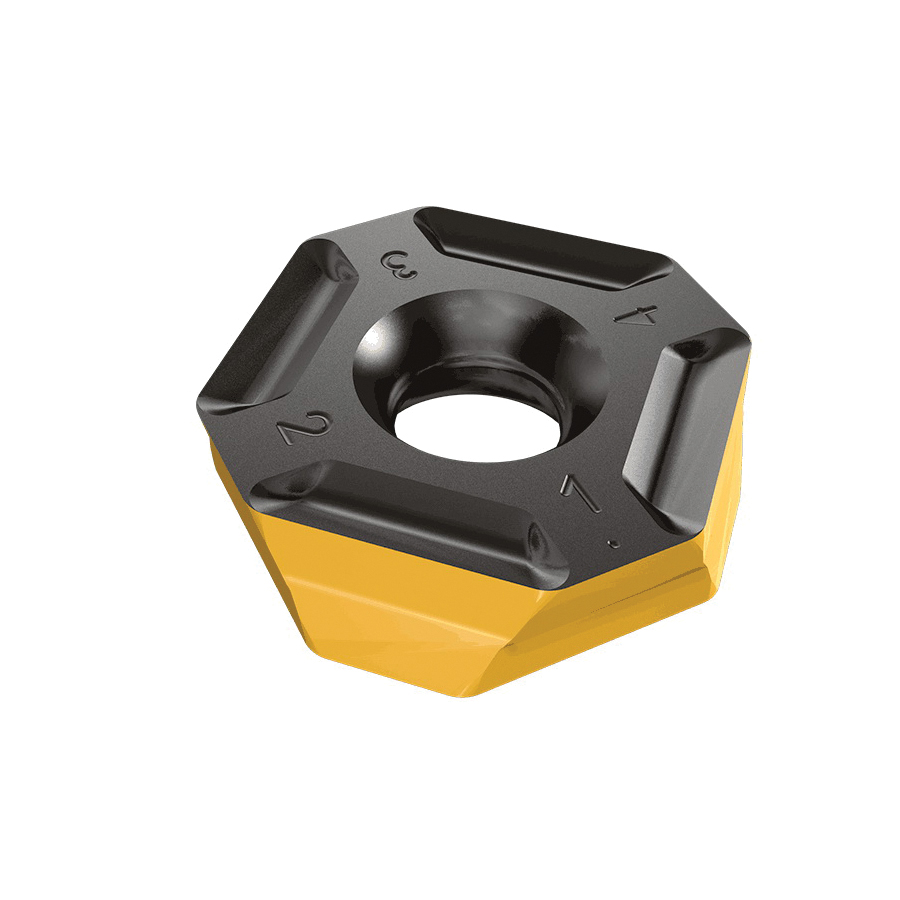

Iscar 5607526 DOVEIQMILL 845 LINE Double Sided Milling Insert With 8 Cutting Edges, SYHU Insert, 0704 Insert, Carbide, Manufacturers Grade: IC830, Squared Shape, Material Grade: M, P, S
Invoice description:
Iq845 Syhu 0704adn-mm 83
Factory Order

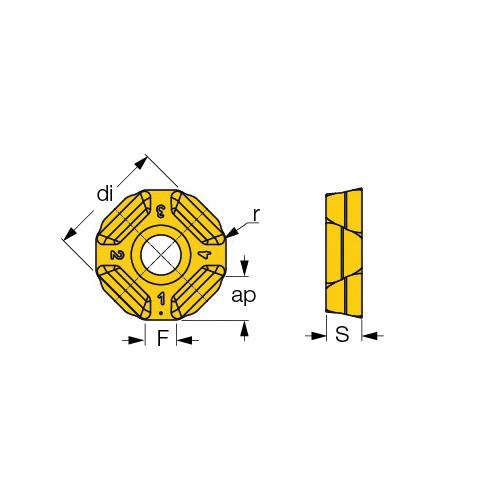

Iscar Milling Insert, Double Sided, Series: DOVEIQMILL 845 LINE, SYHU Insert, 0704 Insert, Squared Shape, 13.8 mm Inscribed Circle, 4.2 mm Thickness, 13.8 mm Width, 13.8 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: IQ845 SYHU 0704ADN-MM IC830, Neutral Hand of Insert, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertAmbidextrous
Inscribed Circle13.8 mm
Insert Size0704
Insert StyleSYHU
ISO CodeIQ845 SYHU 0704ADN-MM IC830
Length13.8 mm
Manufacturers GradeIC830
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesDOVEIQMILL 845 LINE
ShapeSquared
Thickness4.2 mm
TypeDouble Sided
Width13.8 mm
Additional Information
Country of OriginIL
