Iscar ISCAR 5607521

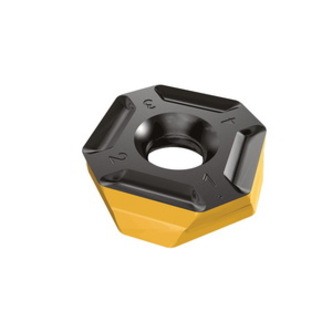

Iscar 5607521 DOVEIQMILL 845 LINE Milling Insert With 8 Cutting Edges, IQ845 SYHU Insert, 704 Insert, Carbide, Manufacturers Grade: IC810, Squared Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5607521
$39.54 EA
Factory Order
Estimated to ship in 14 days
QTY:

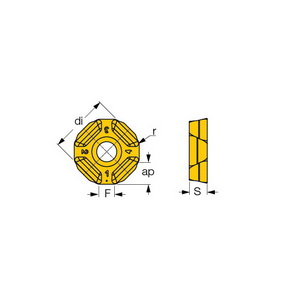

Iscar Milling Insert, Series: DOVEIQMILL 845 LINE, IQ845 SYHU Insert, 704 Insert, Squared, 13.8 mm Inscribed Circle, 4.2 mm Thickness, 13.8 mm Width, 13.8 mm Length, 0.8 mm Corner Radius, Manufacturers Grade: IC810, ISO Code: IQ845 SYHU 0704ADTN IC810, Carbide, PVD-AlTiN+TiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
Corner Radius0.8 mm
FinishPVD-AlTiN+TiN Coated
Inscribed Circle13.8 mm
Insert Size704
Insert StyleIQ845 SYHU
ISO CodeIQ845 SYHU 0704ADTN IC810
Length13.8 mm
Manufacturers GradeIC810
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeK, P
SeriesDOVEIQMILL 845 LINE
ShapeSquared
Thickness4.2 mm
Width13.8 mm
