Iscar ISCAR 5607518

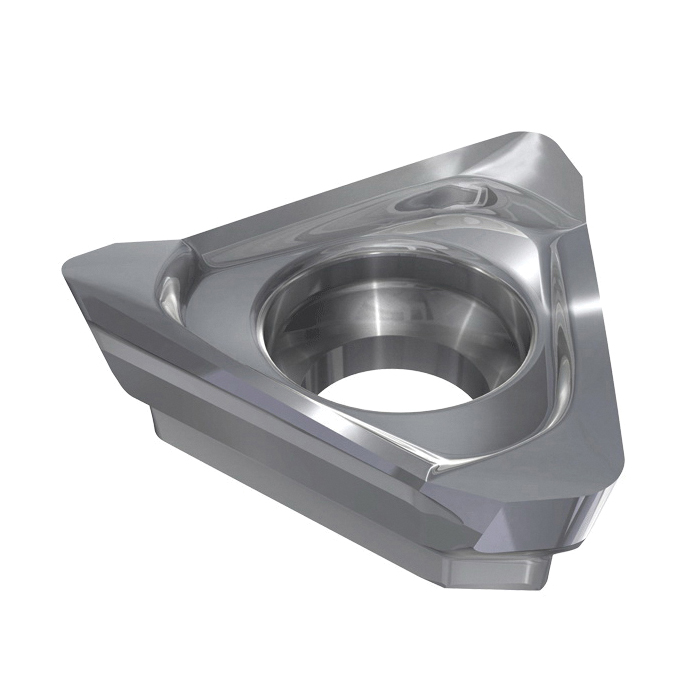

Iscar 5607518 HELI3MILL 3-Helical Cutting Edge Milling Insert, ANSI Code: HM390 TPCR1003PDFR-P, HM390 Insert, 1003 Insert, Manufacturers Grade: IC28, Triangular Shape

Pack Size: 10
UNSPSC: 23291601
Manufacturer PN: 5607518
$29.28 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, 3-Helical Cutting Edge, Series: HELI3MILL, HM390 Insert, 1003 Insert, Triangular, 0.295 in Inscribed Circle, 0.157 in Thickness, 0.429 in Length, 0.031 in Corner Radius, Manufacturers Grade: IC28, ANSI Code: HM390 TPCR1003PDFR-P, ISO Code: HM390 TPKT/CT 1003

  • Features

  • Triangular inserts with 3 helical cutting edges for 90deg shoulder accuracy
  • For general use applications

Specifications

ApplicationMilling
ANSI CodeHM390 TPCR1003PDFR-P
Corner Radius0.031 in
Inscribed Circle0.295 in
Insert Size1003
Insert StyleHM390
ISO CodeHM390 TPKT/CT 1003
Length0.429 in
Manufacturers GradeIC28
SeriesHELI3MILL
ShapeTriangular
Thickness0.157 in
Type3-Helical Cutting Edge
