Iscar ISCAR 5607513

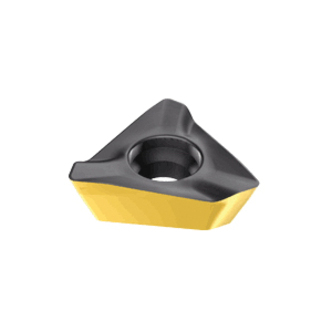

Iscar 5607513 HELIIQMILL 390 LINE Milling Insert With 3 Helical Cutting Edges, HM390 TPKT Insert, 1003 Insert, Carbide, Manufacturers Grade: IC808, Triangular Shape, Material Grade: H, K, M, P, S
Invoice description:
Hm390 Tpkt 1003pdr Ic808
Factory Order

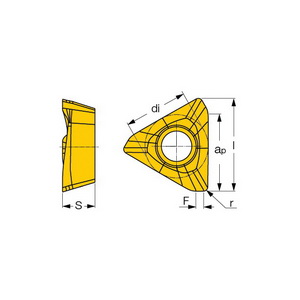

Iscar Milling Insert, Series: E2085, HM390 TPKT Insert, 1003 Insert, Triangular, 7.5 mm Inscribed Circle, 3.85 mm Thickness, 10.9 mm Length, 0.8 mm Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC808, ISO Code: HM390 TPKT 1003PDR IC808, Right Hand, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationFacing, Helical Interpolation, Shouldering and Slotting
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Inscribed Circle7.5 mm
Insert Size1003
Insert StyleHM390 TPKT
ISO CodeHM390 TPKT 1003PDR IC808
Lead Angle11 deg
Length10.9 mm
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELIIQMILL 390 LINE
ShapeTriangular
Thickness3.85 mm
Additional Information
Country of OriginIS
