Iscar ISCAR 5607371

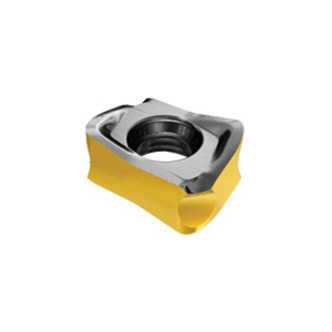

Iscar 5607371 HELIDO 490 LINE/FEEDMILL Double Sided Milling Insert With 4 Helical Cutting Edges, ANKX Insert, 0904 Insert, Carbide, Manufacturers Grade: IC830, 85 deg Parallelogram Shape, Material Grade: M, P, S
Invoice description:
H490 Ankx 0904r12t-ff 83
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 490 LINE/FEEDMILL, ANKX Insert, 0904 Insert, 85 deg Parallelogram, 4.3 mm Thickness, 6.2 mm Width, 8.5 mm Length, FF Chipbreaker, 1 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: H490 ANKX 0904R12T-FF IC830, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Fast Feed Milling, Rampdown, Shouldering and Slotting
ChipbreakerFF
Corner Radius1 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size0904
Insert StyleANKX
ISO CodeH490 ANKX 0904R12T-FF IC830
Length8.5 mm
Manufacturers GradeIC830
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIDO 490 LINE/FEEDMILL
Shape85 deg Parallelogram
Thickness4.3 mm
TypeDouble Sided
Width6.2 mm
Additional Information
Country of OriginIL
