Iscar ISCAR 5607315

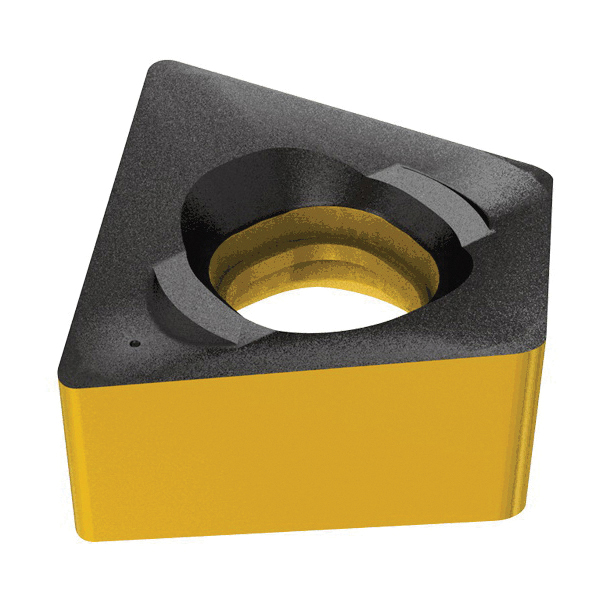

Iscar 5607315 HELITANG 4-Right/Left Hand Cutting Edge Milling Insert, ANSI Code: XNMU 130608PNN-MM, XNMU Insert, 130608 Insert, Manufacturers Grade: IC830, Squared Shape

Invoice description: Xnmu 130608pnn-mm Ic830 Milling Insert

UNSPSC: 23291601
Manufacturer PN: 5607315
$29.04 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, 4-Right/Left Hand Cutting Edge, Series: HELITANG, XNMU Insert, 130608 Insert, Squared, 0.512 in Inscribed Circle, 0.335 in Thickness, 0.512 in Width, 0.512 in Length, 0.031 in Corner Radius, Manufacturers Grade: IC830, ANSI Code: XNMU 130608PNN-MM, ISO Code: XNMU 13

  • Features

  • 4-right and 4-left hand cutting edges

Specifications

ApplicationMilling
ANSI CodeXNMU 130608PNN-MM
Corner Radius0.031 in
Inscribed Circle0.512 in
Insert Size130608
Insert StyleXNMU
ISO CodeXNMU 13
Length0.512 in
Manufacturers GradeIC830
SeriesHELITANG
ShapeSquared
Thickness0.335 in
Type4-Right/Left Hand Cutting Edge
Width0.512 in

Additional Information

Standards/ApprovalISO 13399
