Iscar ISCAR 5607260

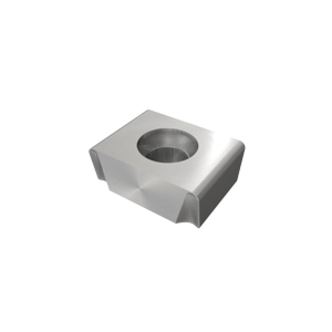

Iscar 5607260 TANGSLOT Milling Insert With 4 Cutting Edges, LNET Insert, 125516 Insert, Carbide, Manufacturers Grade: IC910, Rectangle Shape, Material Grade: K, P

UNSPSC: 23242107
Manufacturer PN: 5607260
$30.10 EA
Factory Order
Estimated to ship in 14 days
QTY:

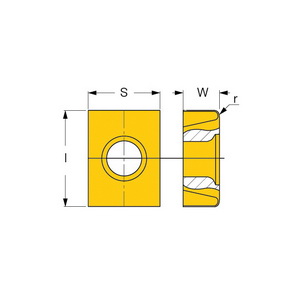

Iscar Milling Insert, Series: TANGSLOT, LNET Insert, 125516 Insert, Rectangle Shape, 9.52 mm Thickness, 5.5 mm Width, 12.7 mm Length, TN Chipbreaker, 1.6 mm Corner Radius, 0 deg Lead Angle, Manufacturers Grade: IC910, ISO Code: LNET 125516-TN IC910, Neutral Hand of Insert, Carbide, PVD-AlTiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic and Cast Iron Material Application

Specifications

ApplicationT-Slotting, Bottom Shouldering, Shouldering, Side Slotting and Slotting
ChipbreakerTN
Corner Radius1.6 mm
FinishPVD-AlTiN Coated
Hand of InsertNeutral
Insert Size125516
Insert StyleLNET
ISO CodeLNET 125516-TN IC910
Lead Angle0 deg
Length12.7 mm
Manufacturers GradeIC910
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic and Cast Iron
Material GradeK, P
SeriesTANGSLOT
ShapeRectangle
Thickness9.52 mm
Width5.5 mm
