Iscar ISCAR 5607219

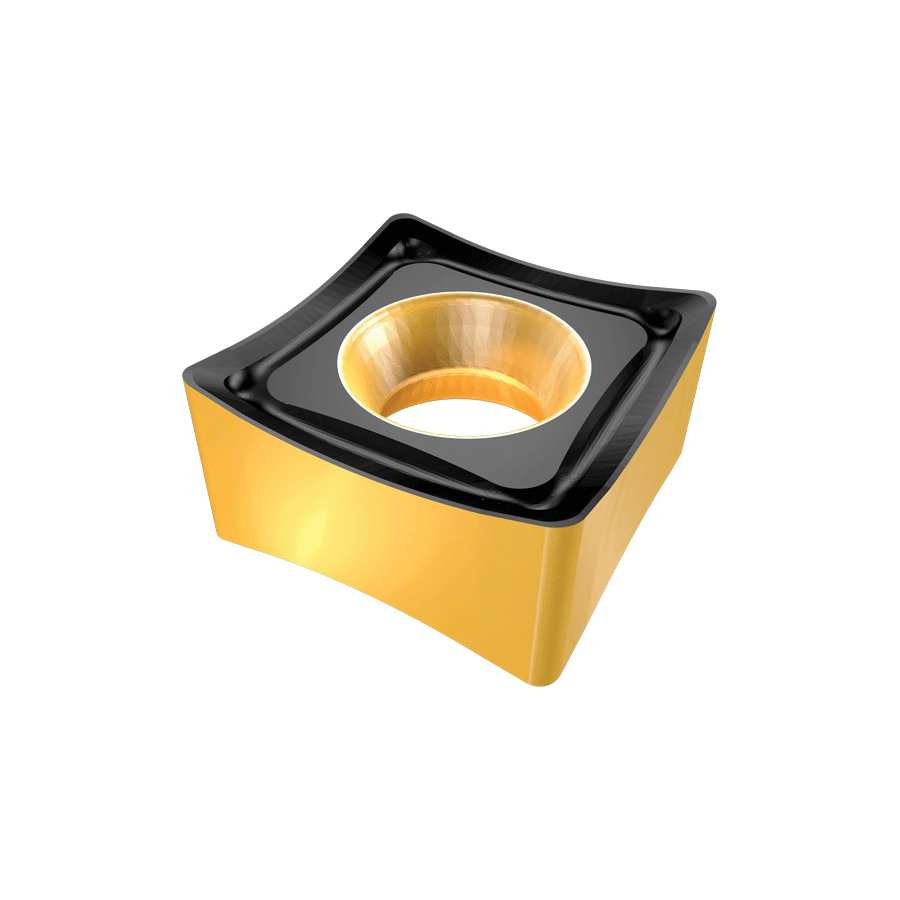

Iscar 5607219 HELIDO 890 LINE Double Sided Milling Insert With 2 Serrated Cutting Edges, SNMU Insert, 1305 Insert, Carbide, Manufacturers Grade: IC810, Squared Shape, Material Grade: K, P
Invoice description:
S890 Snmu 1305pntn Ic810
Factory Order

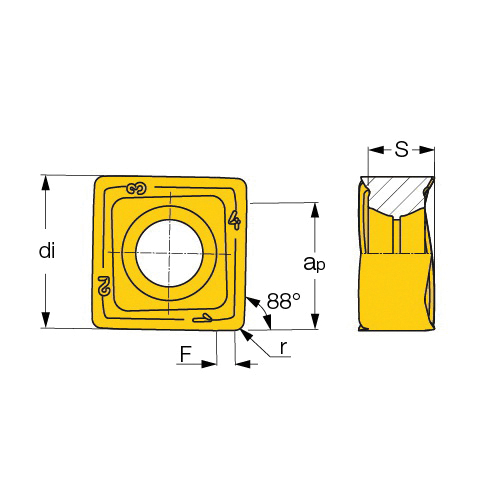

Iscar Milling Insert, Double Sided, Series: HELIDO 890 LINE, SNMU Insert, 1305 Insert, Squared, 13 mm Inscribed Circle, 5.7 mm Thickness, 13 mm Width, 13 mm Length, PNTN Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC810, ISO Code: S890 SNMU 1305PNTN IC810, Neutral Hand, Carbide, PVD-AlTiN+TiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing and Shouldering
ChipbreakerPNTN
Corner Radius0.8 mm
FinishPVD-AlTiN+TiN Coated
Hand of InsertNeutral
Inscribed Circle13 mm
Insert Size1305
Insert StyleSNMU
ISO CodeS890 SNMU 1305PNTN IC810
Length13 mm
Manufacturers GradeIC810
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeK, P
SeriesHELIDO 890 LINE
ShapeSquared
Thickness5.7 mm
TypeDouble Sided
Width13 mm
Additional Information
Country of OriginIL
