Iscar ISCAR 5606856

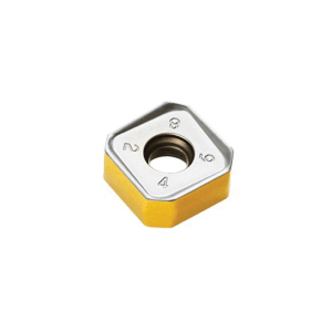

Iscar 5606856 HELIDO 845 LINE Double Sided Milling Insert With 8 Helical Right Hand Cutting Edges, SXMU Insert, 1606 Insert, Carbide, Manufacturers Grade: IC810, Squared Shape, Material Grade: K, P
Invoice description:
S845 Sxmu 1606adtr-rm 81
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 845 LINE, SXMU Insert, 1606 Insert, Squared Shape, 16.35 mm Inscribed Circle, 7.45 mm Thickness, 16.35 mm Width, 16.35 mm Length, RM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC810, ISO Code: S845 SXMU 1606ADTR-RM IC810, Right Hand of Insert, Carbide, PVD-AlTiN+TiN Coated, Material Grade: K, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerRM
Corner Radius0.8 mm
FinishPVD-AlTiN+TiN Coated
Hand of InsertRight
Inscribed Circle16.35 mm
Insert Size1606
Insert StyleSXMU
ISO CodeS845 SXMU 1606ADTR-RM IC810
Length16.35 mm
Manufacturers GradeIC810
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeK, P
SeriesHELIDO 845 LINE
ShapeSquared
Thickness7.45 mm
TypeDouble Sided
Width16.35 mm
Additional Information
Country of OriginIL
