Iscar ISCAR 5606738

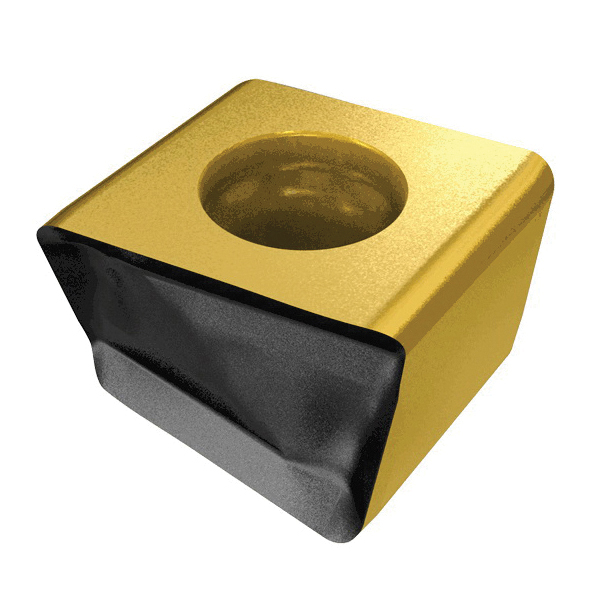

Iscar 5606738 HELITANG FEEDMILL 4-Cutting Edge Tangentially Clamped Milling Insert, ANSI Code: HTP LNHT 0604 ETR, HTP Insert, 0604 Insert, Manufacturers Grade: IC830

Invoice description: Htp Lnht 0604 Etr Ic830

UNSPSC: 23291601
Manufacturer PN: 5606738
$32.56 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, 4-Cutting Edge Tangentially Clamped, Series: HELITANG FEEDMILL, HTP Insert, 0604 Insert, 0.16 in Thickness, 0.256 in Length, 0.031 in Corner Radius, Manufacturers Grade: IC830, ANSI Code: HTP LNHT 0604 ETR, ISO Code: HTP LN.. 0604

  • Features

  • The insert orientation on the tool results in excellent flatness

Specifications

ApplicationMilling and Plungers
ANSI CodeHTP LNHT 0604 ETR
Corner Radius0.031 in
Insert Size0604
Insert StyleHTP
ISO CodeHTP LN.. 0604
Length0.256 in
Manufacturers GradeIC830
SeriesHELITANG FEEDMILL
Thickness0.16 in
Type4-Cutting Edge Tangentially Clamped

Additional Information

Standards/ApprovalISO 13399
