Iscar ISCAR 5606736

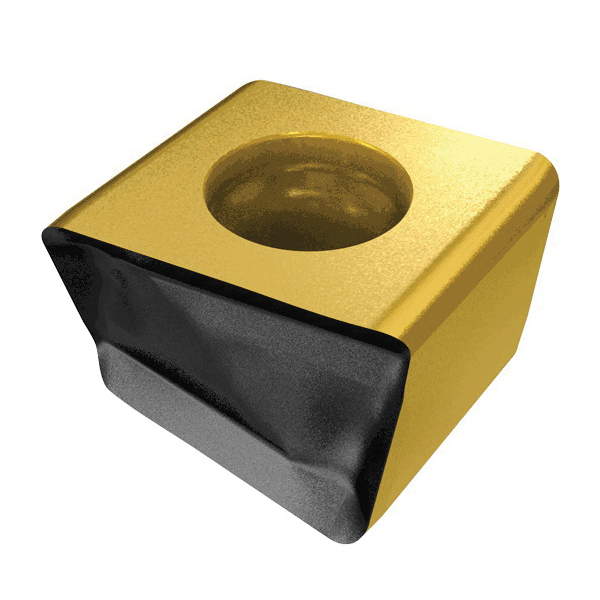

Iscar 5606736 TANGPLUNGE 4-Cutting Edge Tangentially Clamped Milling Insert, ANSI Code: HTP LNHT 0604 ER, HTP Insert, 0604 Insert, Manufacturers Grade: IC330
Invoice description:
Htp Lnht 0604 Er Ic330 Milling Insert
Pack Size: 10
UNSPSC:
23291601
Manufacturer PN: 5606736
$32.56 EA
Factory OrderEstimated to ship in 14 days
Iscar Milling Insert, 4-Cutting Edge Tangentially Clamped, Series: TANGPLUNGE, HTP Insert, 0604 Insert, 4.06 mm Thickness, 6.77 mm Width, 6.5 mm Length, 0.8 mm Corner Radius, Manufacturers Grade: IC330, ANSI Code: HTP LNHT 0604 ER, ISO Code: HTP LN.. 0604
Features
- The insert orientation on the tool results in excellent flatness
- 4-cutting edges used on plungers
Specifications
ApplicationMilling
ANSI CodeHTP LNHT 0604 ER
Corner Radius0.8 mm
Insert Size0604
Insert StyleHTP
ISO CodeHTP LN.. 0604
Length6.5 mm
Manufacturers GradeIC330
SeriesTANGPLUNGE
Thickness4.06 mm
Type4-Cutting Edge Tangentially Clamped
Width6.77 mm
Additional Information
Standards/ApprovalISO 13399
