Iscar ISCAR 5606671

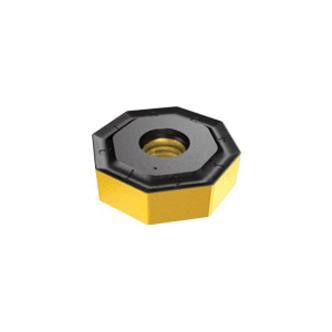

Iscar 5606671 16MILL Double Sided Milling Insert With 16 Cutting Edges, ONMU Insert, 080608 Insert, Carbide, Manufacturers Grade: IC5400, Octagon Shape, Material Grade: M, P

UNSPSC: 23242107
Manufacturer PN: 5606671
$38.48 EA
Factory Order
Estimated to ship in 14 days
QTY:

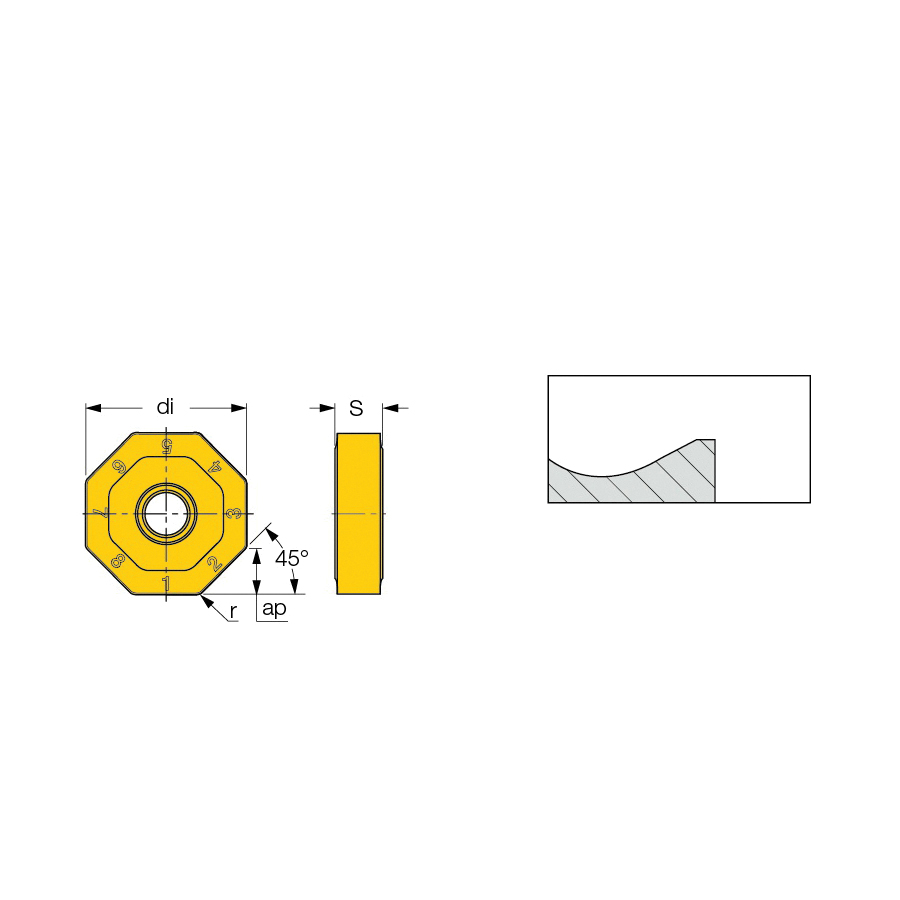

Iscar Milling Insert, Double Sided, Series: 16MILL, ONMU Insert, 080608 Insert, Octagon, 20.2 mm Inscribed Circle, 6 mm Thickness, MM Chipbreaker, 0.8 mm Corner Radius, 45 deg Lead Angle, Manufacturers Grade: IC5400, ISO Code: ONMU 080608-TN-MM IC5400, Neutral Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Hand of InsertNeutral
Inscribed Circle20.2 mm
Insert Size080608
Insert StyleONMU
ISO CodeONMU 080608-TN-MM IC5400
Lead Angle45 deg
Manufacturers GradeIC5400
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex
Material GradeM, P
Series16MILL
ShapeOctagon
Thickness6 mm
TypeDouble Sided
