Iscar ISCAR 5606398

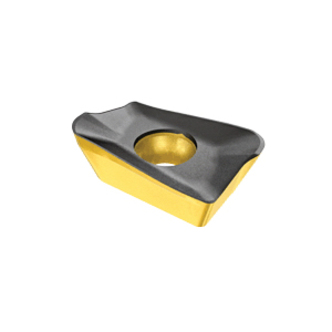

Iscar 5606398 HELI2000 Milling Insert, HM90 APKT Insert, 100308 Insert, Carbide, Manufacturers Grade: IC830, Parallelogram Shape, Material Grade: M, P, S
Invoice description:
Hm90 Apkt 100308r Ic830
Factory Order

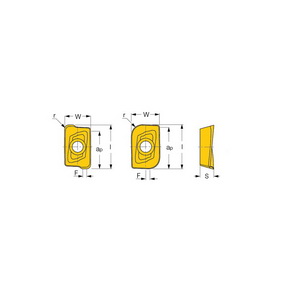

Iscar Milling Insert, Series: HELI2000, HM90 APKT Insert, 100308 Insert, Parallelogram, 3.53 mm Thickness, 6.76 mm Width, 11.45 mm Length, 0.8 mm Corner Radius, 11 deg Lead Angle, Manufacturers Grade: IC830, ISO Code: HM90 APKT 100308R IC830, Right Hand, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationCountersinking, Facing, Profiling, Rampdown, Shouldering, Slotting, Slanted Shoulder and Chamfer
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Insert Size100308
Insert StyleHM90 APKT
ISO CodeHM90 APKT 100308R IC830
Lead Angle11 deg
Length11.45 mm
Manufacturers GradeIC830
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELI2000
ShapeParallelogram
Thickness3.53 mm
Width6.76 mm
Additional Information
Country of OriginIS
