Iscar ISCAR 5606393

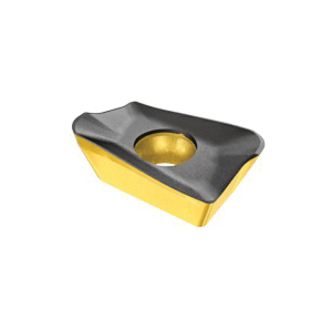

Iscar 5606393 HELI2000 Single Sided Milling Insert With 2 Straight Tangent Cutting Edges, APKT Insert, 1003 Insert, Carbide, Manufacturers Grade: IC808, 85 deg Parallelogram Shape, Material Grade: H, K, M, P, S
Invoice description:
Hm90 Apkt 1003pdr Ic808
Factory Order
Iscar Milling Insert, Single Sided, Series: HELI2000, APKT Insert, 1003 Insert, 85 deg Parallelogram Shape, 6.68 mm Inscribed Circle, 3.53 mm Thickness, 6.76 mm Width, 11.45 mm Length, PDR Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: HM90 APKT 1003PDR IC808, Right Hand of Insert, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application
Specifications
ApplicationCountersinking, Facing, Profiling, Rampdown, Shouldering, Slanted Shoulder and Chamfer and Slotting
ChipbreakerPDR
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Inscribed Circle6.68 mm
Insert Size1003
Insert StyleAPKT
ISO CodeHM90 APKT 1003PDR IC808
Length11.45 mm
Manufacturers GradeIC808
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron
Material GradeH, K, M, P, S
SeriesHELI2000
Shape85 deg Parallelogram
Thickness3.53 mm
TypeSingle Sided
Width6.76 mm
Additional Information
Country of OriginIL
