Iscar ISCAR 5606381

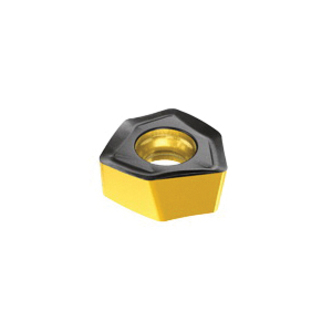

Iscar 5606381 HELI6FEED UPFEED LINE FEEDMILL Double Sided Milling Insert, WXCU Insert, 040310 Insert, Carbide, Manufacturers Grade: IC830, 80 deg Trigon Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5606381
$36.74 EA
Factory Order
Estimated to ship in 14 days
QTY:

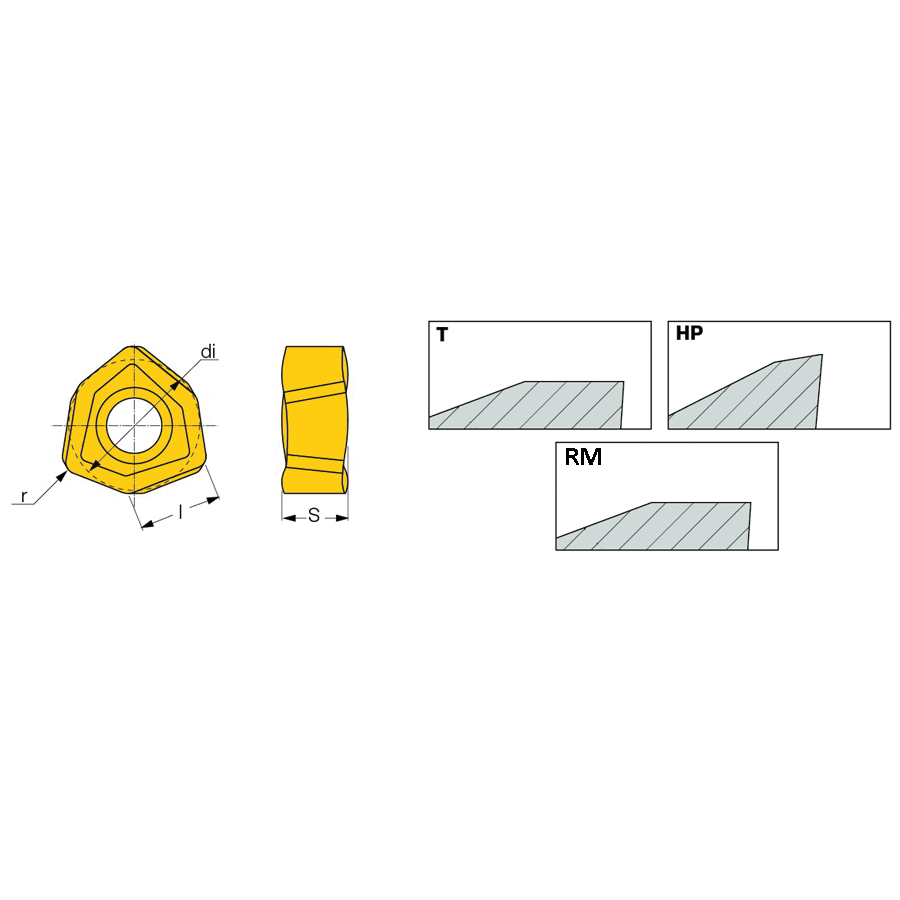

Iscar Milling Insert, Double Sided, Series: HELI6FEED UPFEED LINE FEEDMILL, WXCU Insert, 040310 Insert, 80 deg Trigon Shape, 6.25 mm Inscribed Circle, 3.1 mm Thickness, 4.13 mm Length, HP Chipbreaker, 0.96 mm Corner Radius, Manufacturers Grade: IC830, ISO Code: H600 WXCU 040310HP IC830, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Specifications

ApplicationFacing, Fast Feed Milling, Helical Interpolation, Plunging and Recessing, Profiling, Rampdown and Side Plunging
ChipbreakerHP
Corner Radius0.96 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Inscribed Circle6.25 mm
Insert Size040310
Insert StyleWXCU
ISO CodeH600 WXCU 040310HP IC830
Length4.13 mm
Manufacturers GradeIC830
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELI6FEED UPFEED LINE FEEDMILL
Shape80 deg Trigon
Thickness3.1 mm
TypeDouble Sided
