Iscar ISCAR 5606369

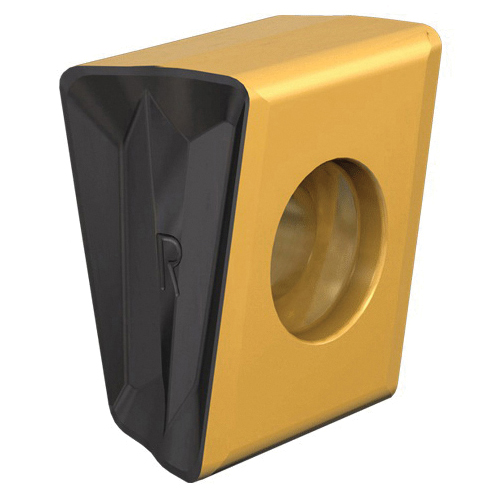

Iscar 5606369 HELITANG 4-Helical Cutting Edge Tangentially Clamped Milling Insert, ANSI Code: T490 LNMT 1306PNTR, T490 Insert, 1306 Insert, Manufacturers Grade: IC330
Invoice description:
T490 Lnmt 1306pntr Ic330
Factory Order
Iscar Milling Insert, 4-Helical Cutting Edge Tangentially Clamped, Series: HELITANG, T490 Insert, 1306 Insert, 6.65 mm Thickness, 13.05 mm Width, 13.74 mm Length, 0.8 mm Corner Radius, Manufacturers Grade: IC330, ANSI Code: T490 LNMT 1306PNTR, ISO Code: T490 LNMT/LNHT 1306
Features
- The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts
Specifications
ApplicationMilling
ANSI CodeT490 LNMT 1306PNTR
Corner Radius0.8 mm
Insert Size1306
Insert StyleT490
ISO CodeT490 LNMT/LNHT 1306
Length13.74 mm
Manufacturers GradeIC330
SeriesHELITANG
Thickness6.65 mm
Type4-Helical Cutting Edge Tangentially Clamped
Width13.05 mm
Additional Information
Standards/ApprovalISO 13399
