Iscar ISCAR 5606350

Iscar 5606350 HELIDO Double Sided Milling Insert, H600 WXCU Insert, 080612 Insert, Carbide, Manufacturers Grade: IC808, Trigon Shape, Material Grade: H, K, M, P, S

Invoice description: H600 Wxcu 080612hp Ic808

UNSPSC: 23242107

Manufacturer PN: 5606350

^$45.35 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

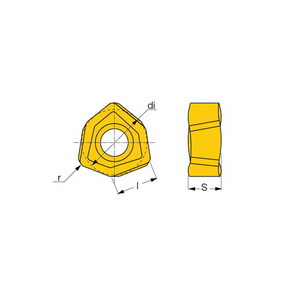

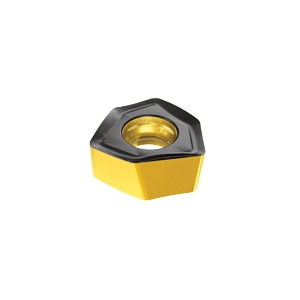

Iscar Milling Insert, Double Sided, Series: HELIDO, H600 WXCU Insert, 080612 Insert, Trigon, 13.65 mm Inscribed Circle, 6.8 mm Thickness, 8.8 mm Length, HP Chipbreaker, 1.2 mm Corner Radius, Manufacturers Grade: IC808, ISO Code: H600 WXCU 080612HP IC808, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationFacing, Fast Feed Milling, Helical Interpolation, Plunging and Recessing, Profiling, Rampdown and Side Plunging

ChipbreakerHP

Corner Radius1.2 mm

FinishPVD-TiAlN/AlTiN+TiN Coated

Inscribed Circle13.65 mm

Insert Size080612

Insert StyleH600 WXCU

ISO CodeH600 WXCU 080612HP IC808

Length8.8 mm

Manufacturers GradeIC808

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

SeriesHELIDO

ShapeTrigon

Thickness6.8 mm

TypeDouble Sided
