Iscar ISCAR 5606333

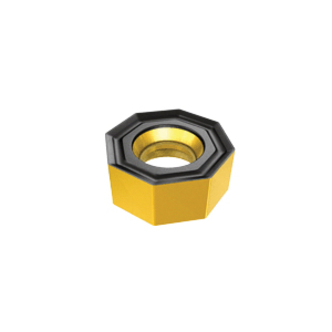

Iscar 5606333 HELIDO 800 LINE Double Sided Milling Insert With 16 Cutting Edges, ONMU Insert, 050505 Insert, Carbide, Manufacturers Grade: IC330, Octagon Shape, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 5606333
$33.04 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Milling Insert, Double Sided, Series: HELIDO 800 LINE, ONMU Insert, 050505 Insert, Octagon Shape, 13 mm Inscribed Circle, 5.2 mm Thickness, TN-MM Chipbreaker, 0.5 mm Corner Radius, 0 deg Lead Angle, Manufacturers Grade: IC330, ISO Code: ONMU 050505-TN-MM IC330, Ambidextrous Hand of Insert, Carbide, PVD-TiCN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

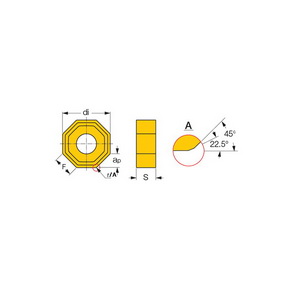

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerTN-MM
Corner Radius0.5 mm
FinishPVD-TiCN+TiN Coated
Hand of InsertAmbidextrous
Inscribed Circle13 mm
Insert Size050505
Insert StyleONMU
ISO CodeONMU 050505-TN-MM IC330
Lead Angle0 deg
Manufacturers GradeIC330
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIDO 800 LINE
ShapeOctagon
Thickness5.2 mm
TypeDouble Sided
