Iscar ISCAR 5606325

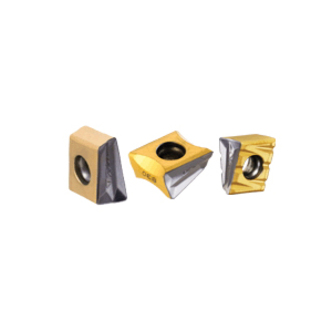

Iscar 5606325 HELITANG T490 LINE Milling Insert With 4 Helical Cutting Edges, LNMT Insert, 1306 Insert, Carbide, Manufacturers Grade: IC830, Rectangle Shape, Material Grade: M, P, S
Invoice description:
T490 Lmnt 1306pntr Lc830 Groove Turn Inserts
In stock
(22)
Iscar Milling Insert, Series: HELITANG T490 LINE, LNMT Insert, 1306 Insert, Rectangle Shape, 13.05 mm Thickness, 6.65 mm Width, 13.74 mm Length, PNTR Chipbreaker, 0.8 mm Corner Radius, 0 deg Lead Angle, Manufacturers Grade: IC830, ISO Code: T490 LNMT 1306PNTR IC830, Right Hand of Insert, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Bottom Shouldering, Shouldering, Rampdown, Side Slotting, Slanted Shoulder and Chamfer and Slotting
ChipbreakerPNTR
Corner Radius0.8 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hand of InsertRight
Insert Size1306
Insert StyleLNMT
ISO CodeT490 LNMT 1306PNTR IC830
Lead Angle0 deg
Length13.74 mm
Manufacturers GradeIC830
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELITANG T490 LINE
ShapeRectangle
Thickness13.05 mm
Width6.65 mm
Additional Information
Country of OriginIL
