Iscar ISCAR 5606288

Iscar 5606288 HELIDO 800 LINE Double Sided Milling Insert With 16 Cutting Edges, ONHU Insert, 050505 Insert, Carbide, Manufacturers Grade: IC808, Octagon Shape, Material Grade: H, K, M, P, S

Invoice description: Onhu 050505-tn-mm Ic808

UNSPSC: 23242107

Manufacturer PN: 5606288

^$42.60 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

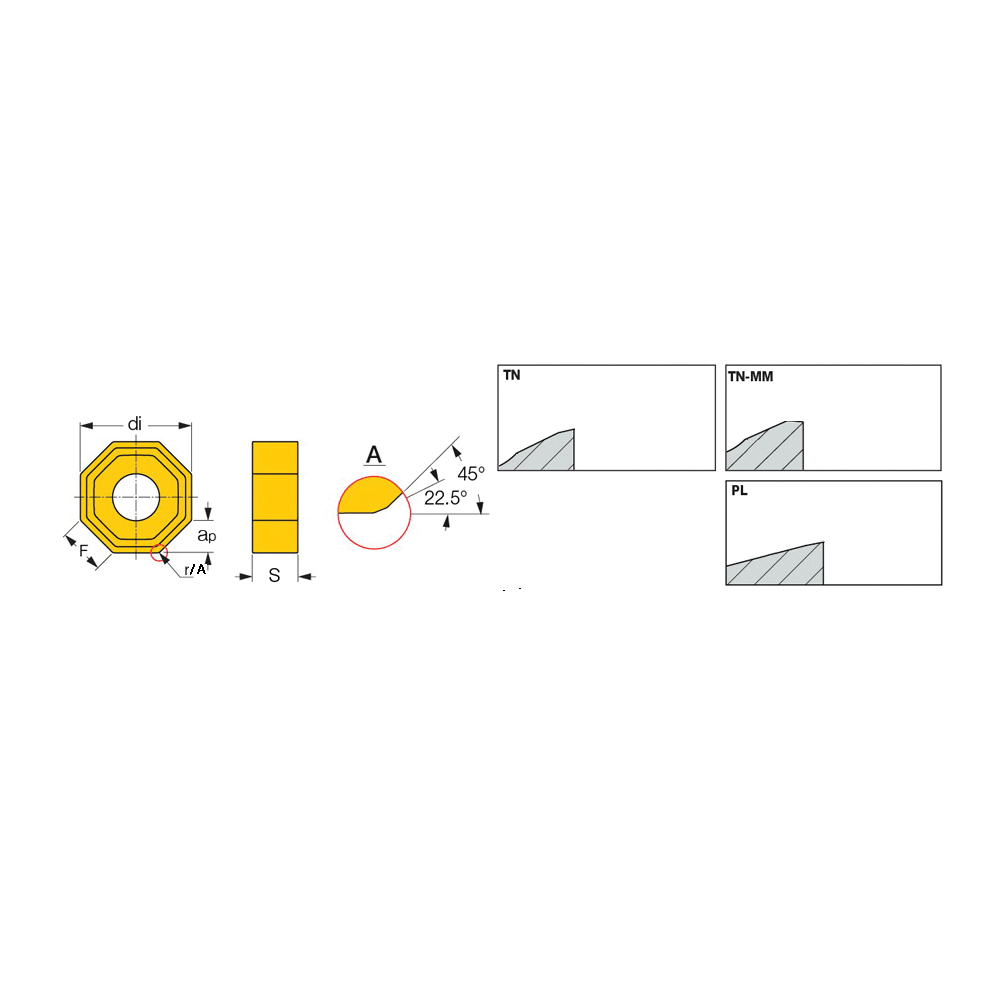

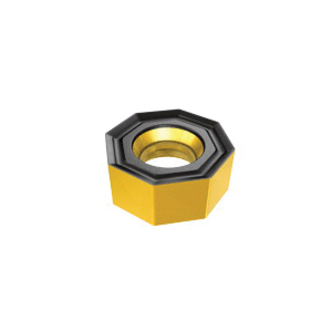

Iscar Milling Insert, Double Sided, Series: HELIDO 800 LINE, ONHU Insert, 050505 Insert, Octagon, 13 mm Inscribed Circle, 5.2 mm Thickness, MM Chipbreaker, 12.5 mm Corner Radius, Positive Rake, 45 deg Lead Angle, Manufacturers Grade: IC808, ISO Code: ONHU 050505-TN-MM IC808, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron Material Application

Specifications

ApplicationFacing, Slanted Shoulder and Chamfer

ChipbreakerMM

Corner Radius12.5 mm

FinishPVD-TiAlN/AlTiN+TiN Coated

Inscribed Circle13 mm

Insert Size050505

Insert StyleONHU

ISO CodeONHU 050505-TN-MM IC808

Lead Angle45 deg

Manufacturers GradeIC808

MaterialCarbide

Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex, Cast Iron, High Temperature Alloys, Hard Steel and Hardened Cast Iron

Material GradeH, K, M, P, S

RakePositive

SeriesHELIDO 800 LINE

ShapeOctagon

Thickness5.2 mm

TypeDouble Sided
