Iscar ISCAR 5606102

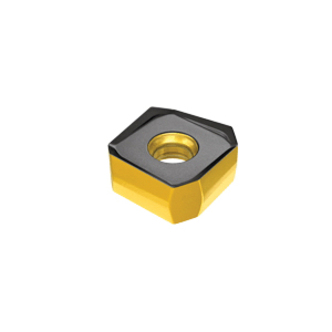

Iscar 5606102 HELIDO 845 LINE Double Sided Milling Insert With 8 Helical Right Hand Cutting Edges, SXMU Insert, 1606 Insert, Carbide, Manufacturers Grade: IC328, Squared Shape, Material Grade: M, P, S
Invoice description:
S845 Sxmu 1606adtr-mm 80 8
Factory Order
Iscar Milling Insert, Double Sided, Series: HELIDO 845 LINE, SXMU Insert, 1606 Insert, Squared Shape, 16.2 mm Inscribed Circle, 7.63 mm Thickness, 16.2 mm Width, 16.2 mm Length, MM Chipbreaker, 0.8 mm Corner Radius, Manufacturers Grade: IC328, ISO Code: S845 SXMU 1606ADTR-MM IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application
Specifications
ApplicationFacing, Slanted Shoulder and Chamfer
ChipbreakerMM
Corner Radius0.8 mm
FinishPVD-TiCN Coated
Hand of InsertRight
Inscribed Circle16.2 mm
Insert Size1606
Insert StyleSXMU
ISO CodeS845 SXMU 1606ADTR-MM IC328
Length16.2 mm
Manufacturers GradeIC328
MaterialCarbide
Material ApplicationSteel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Material GradeM, P, S
SeriesHELIDO 845 LINE
ShapeSquared
Thickness7.63 mm
TypeDouble Sided
Width16.2 mm
Additional Information
Country of OriginIS
